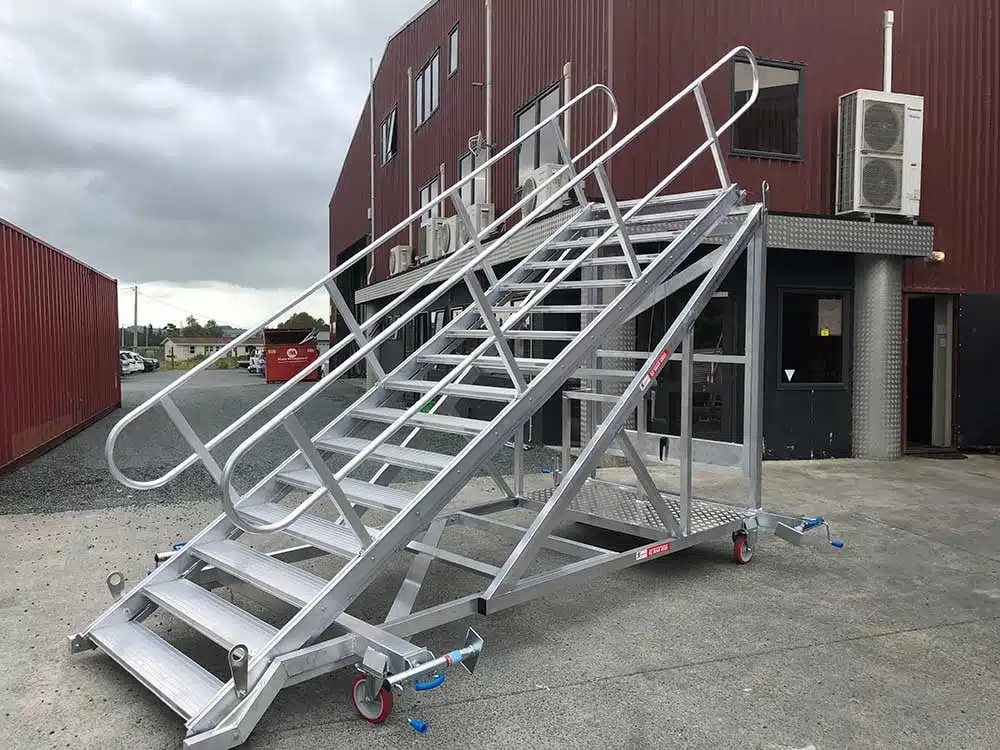

AdjustaForm SKU: Craneable Formwork Stairs
From the Leaders in Temporary Stairs for Construction
AdjustaForm SKU: Craneable Formwork Stairs- Height adjustable via hand winch: 2600-3200mmH in 100mm increments Crane lifting points for relocation around site
- 1200mm wide, self-levelling stair treads provide safe and sturdy footing for two-way traffic
- 200mm castors to allow easy movement on uneven and rough support surfaces
- Self-supporting: no fixing to formwork or a fixed surface required
- Auto-engage, fail-safe height adjustment lock pins
- Swivelling machine jacks for fine height adjustment and stability on uneven surfaces
- Custom heights and widths are available as required
For primary or secondary access to formwork.
These height adjustable temporary stairs for construction are weight rated to 500kg and are compliant to New Zealand standards. 1200mm wide treads provide simultaneous two-way access between floors.
Braked 200mm castors allow the lightweight aluminium unit to be easily moved along leading formwork decks. The self-supporting unit can then be secured in place with height adjustable machine jacks, with no need for fixing into place.
Crane lifting lugs also allow relocation between floors, and a hand winch provides height adjustment in 100mm increments from 2.6m-3.2m high. Other sizes up to 4.1m are also available.
Alternative uses include slab access, temporary site shed access, and vehicle/plant access.
