NON-DRILL Post & Handrail System

NON-DRILL

NON-DRILL Post & Handrail System

NON-DRILL
  • Eliminate the need for drilling with the NON-DRILL edge protection post & handrail system

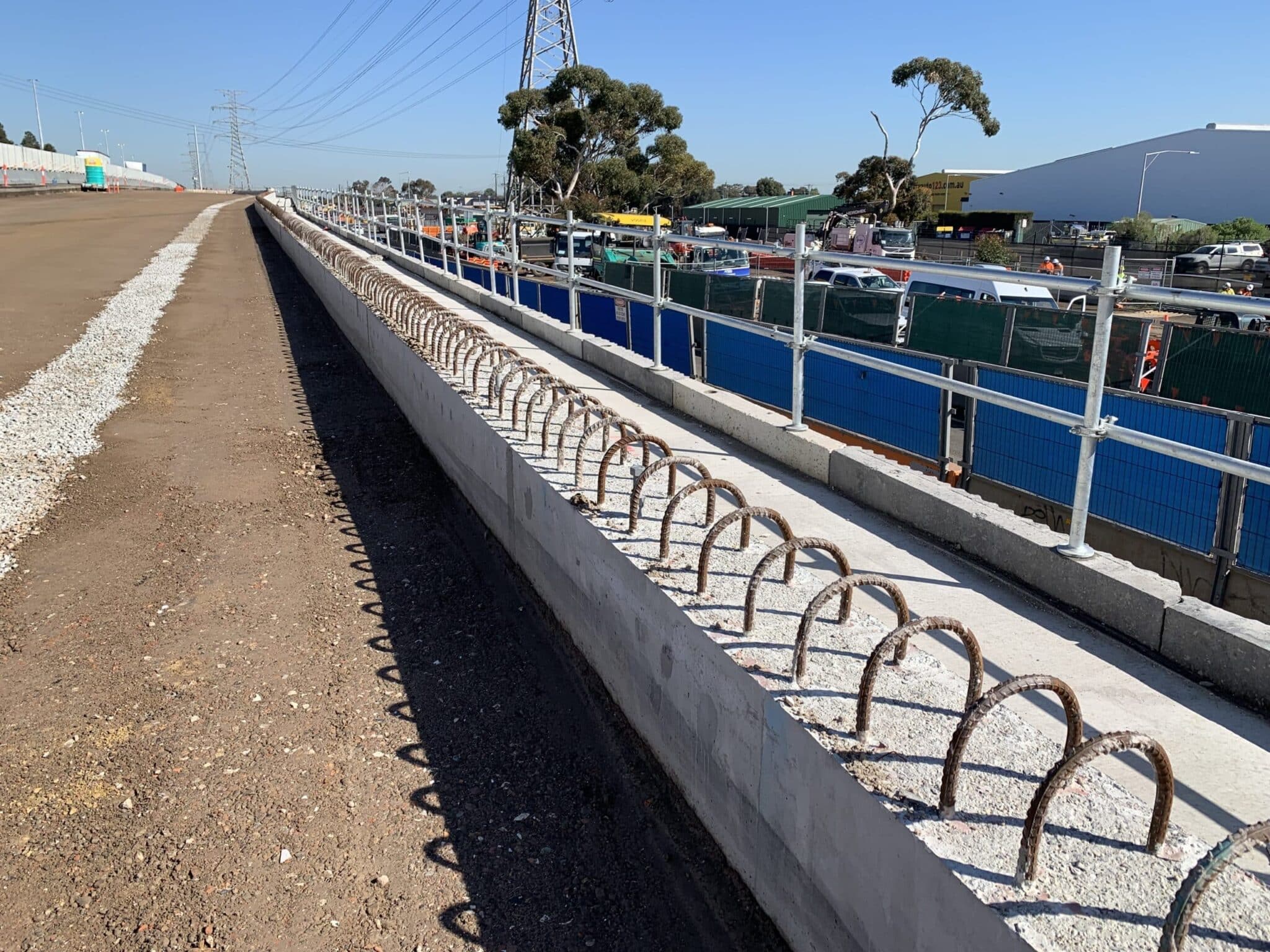

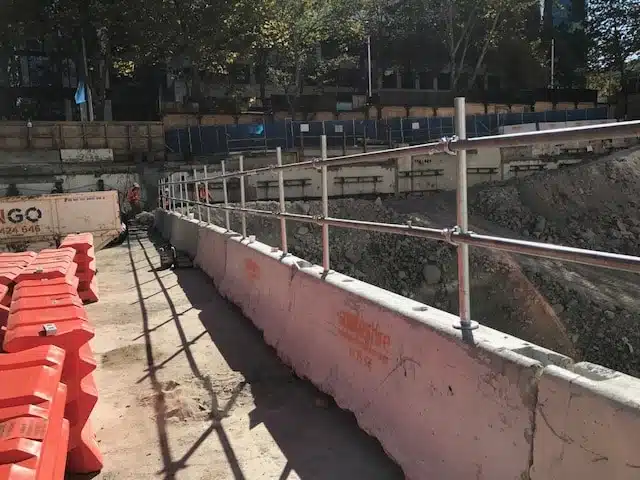

  • Connect to lifting anchors on precast structures
  • NON-DRILL works seamlessly with 1.3, 2.5, 5, 10T connections and hairpin anchors
  • By connecting to the anchor - eliminate human error and meet industry standards for edge protection
  • With NON-DRILL you avoid - costly labour hire, drilling into concrete - exposing steel, cutting off bolts
  • Designed and patented, meets the following standards: AS 1170.1 Australian/New Zealand Standard - Structural design actions, Part 1: Permanent, imposed and other actions AS 1657-2018 Australian Standard - Fixed platforms, walkways, stairways & ladders, under 350N/m, or Category 1 lateral loading under 750N/m, or Category 2 lateral loading (using the same connection, increasing the post thickness)
SKU: NDPOST1.06
NON-DRILL Post – 1.060m
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230110
NON-DRILL 2.5T Clutch
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230111
NON-DRILL 5.0T Clutch
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230112
NON-DRILL 10.0T Clutch and extra baseplate
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230105
NON-DRILL Modified Clutch for 16mm Ferrule / Drop In
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230106
NON-DRILL Modified Clutch for 20mm Ferrule / Drop In
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230116
NON-DRILL Modified Clutch for EdgePro/Hairpin Lifter - Type 1 To Suit; Ancon 8.5t (Purple) REID 7t Jaws (Orange) REID 8.5t 3DX (Yellow)
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230115
NON-DRILL Modified Clutch for EdgePro/Hairpin Lifter - Type 2 To Suit Ancon 4t (Red)
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230117
NON-DRILL Modified Clutch for EdgePro/Hairpin Lifter - Type 3 To Suit; Ancon 15t (Green) REID 10t Jaws (Blue)
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1
SKU: 230118
NONDRILL Shear Stud Connection
  • Meets and passes all load requirements per AS/NZS 4994
  • Complies to AS/NZS 1170.1

Eliminate the need for drilling with the NON-DRILL edge protection post & handrail system
Connect to lifting anchors on precast structures
NON-DRILL works seamlessly with 1.3, 2.5, 5, 10T connections and hairpin anchors
By connecting to the anchor – eliminate human error and meet industry standards for edge protection
With NON-DRILL you avoid – costly labour hire, drilling into concrete – exposing steel, cutting off bolts

Designed and patented, meets the following standards:
AS 1170.1 Australian/New Zealand Standard – Structural design actions, Part 1: Permanent, imposed and other actions
AS 1657-2018 Australian Standard – Fixed platforms, walkways, stairways & ladders,
under 350N/m, or Category 1 lateral loading
under 750N/m, or Category 2 lateral loading (using the same connection, increasing the post thickness)

The latest non-drill innovation provides shipping container edge protection. Enquire now.
