For all ground-based obstacles and trip hazards—from pipelines to machinery—and access to site offices and other temporary structures, Modular Stepover Platforms bring added efficiency and safety to the work area. For most applications, SafeSmart’s modular elements go together to create a large choice of step and platform configurations, for use in construction, oil and gas, utilities and more.

SafeSmart can also incorporate these elements into a more customised system to suit your access needs perfectly, via our own in-house design and manufacture teams.

All stepovers and separate components—base plates, vertical and ladders and platforms—are built tough from high-grade box section aluminium for strength and weather resistance. And tough rubber feet can be used on ladders for less-permanent situations. Supplied disassembled for ease of install in tight locations.

Our Stepover Platforms are available in 3 standard step angles:

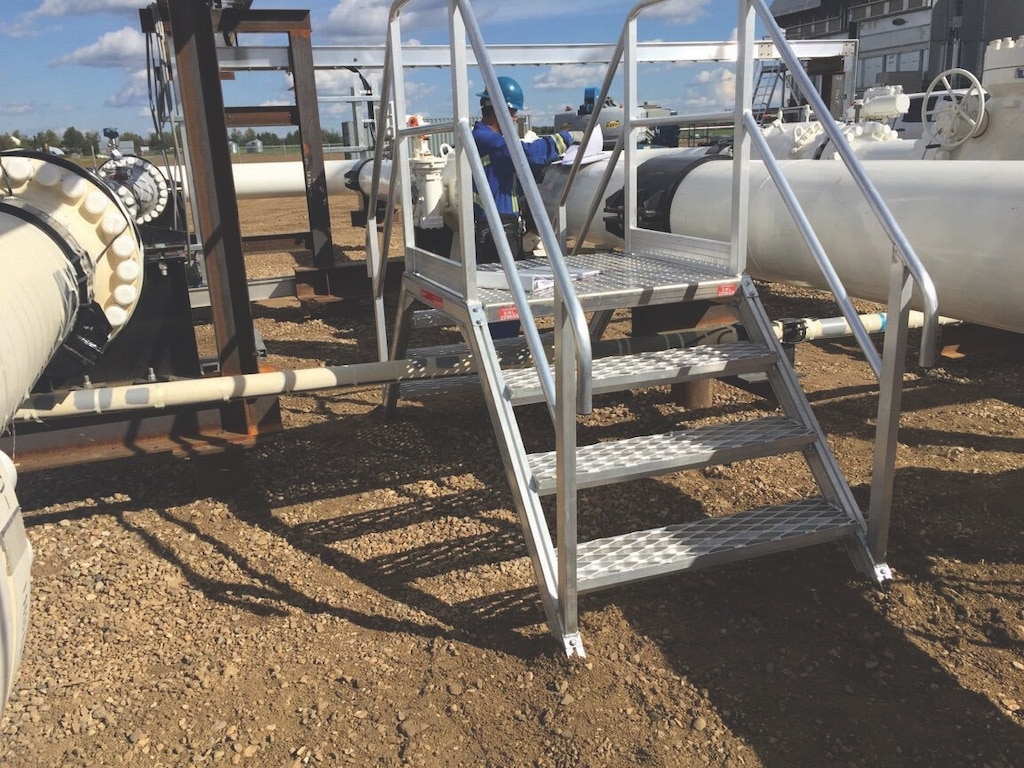

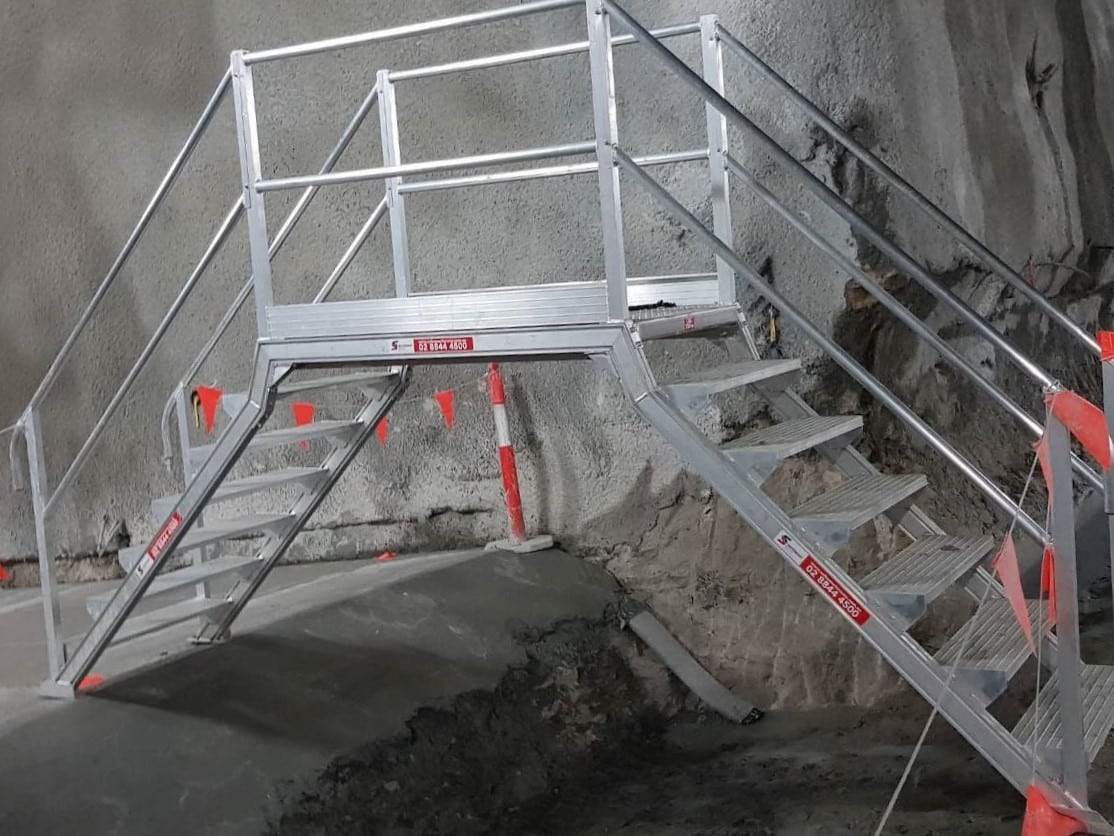

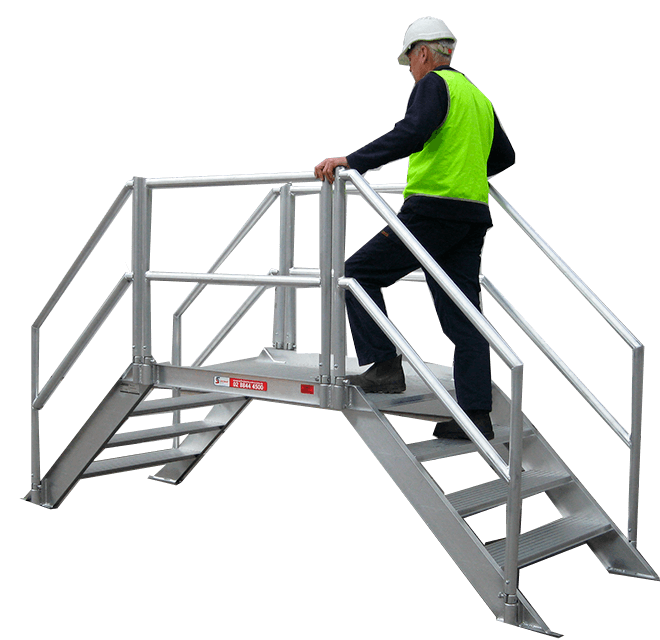

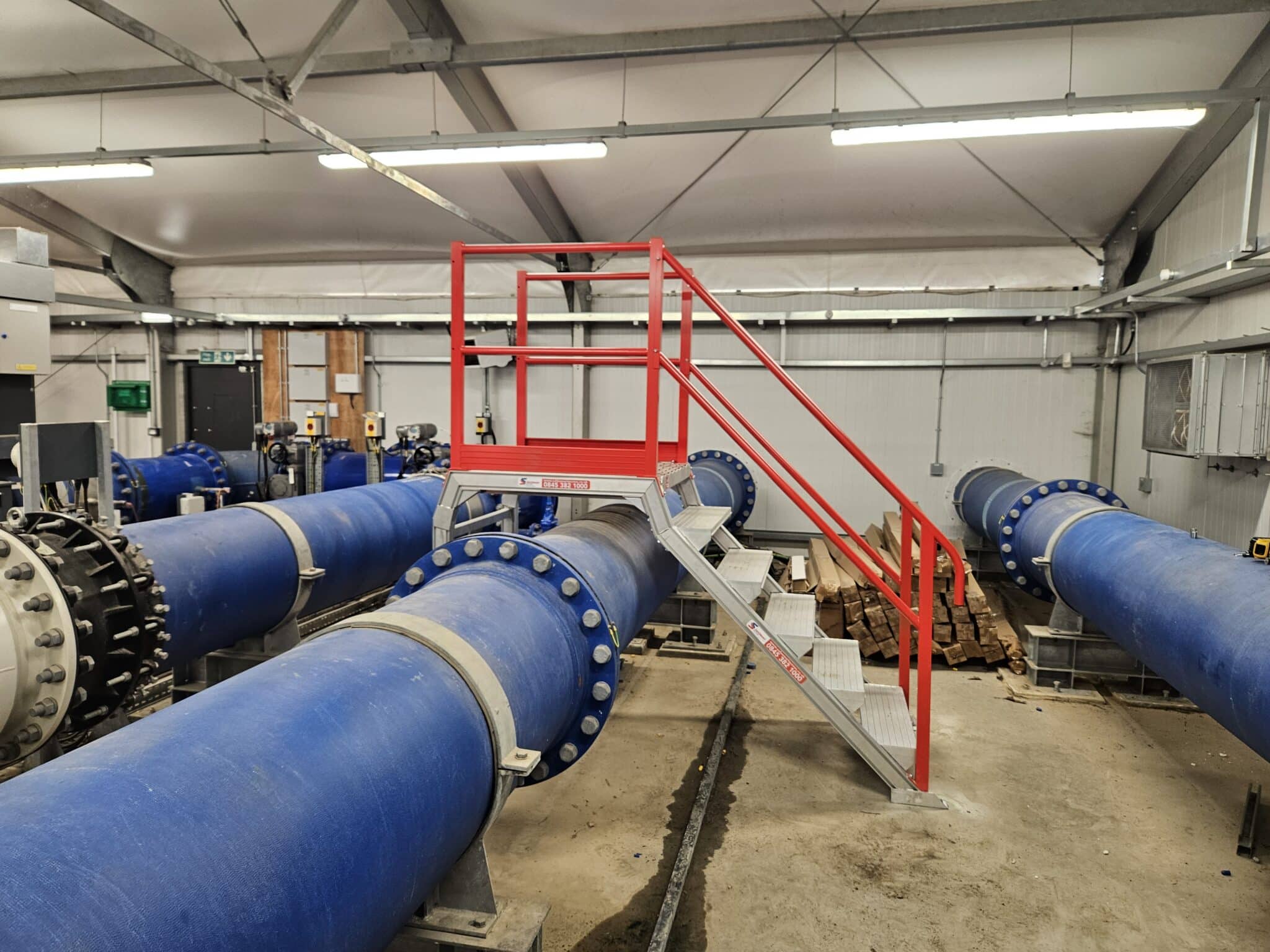

45° Angled Stepover Platforms

  • The 45 degree angle of access stairs are ideal for high traffic areas
  • Keep hands free whilst moving over bridge
  • 220mm deep stair treads for comfortable access to the platform
  • Stair treads are ridged for safety and grip in all site condition

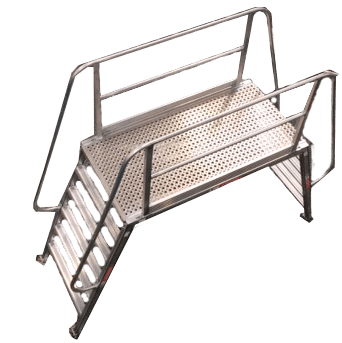

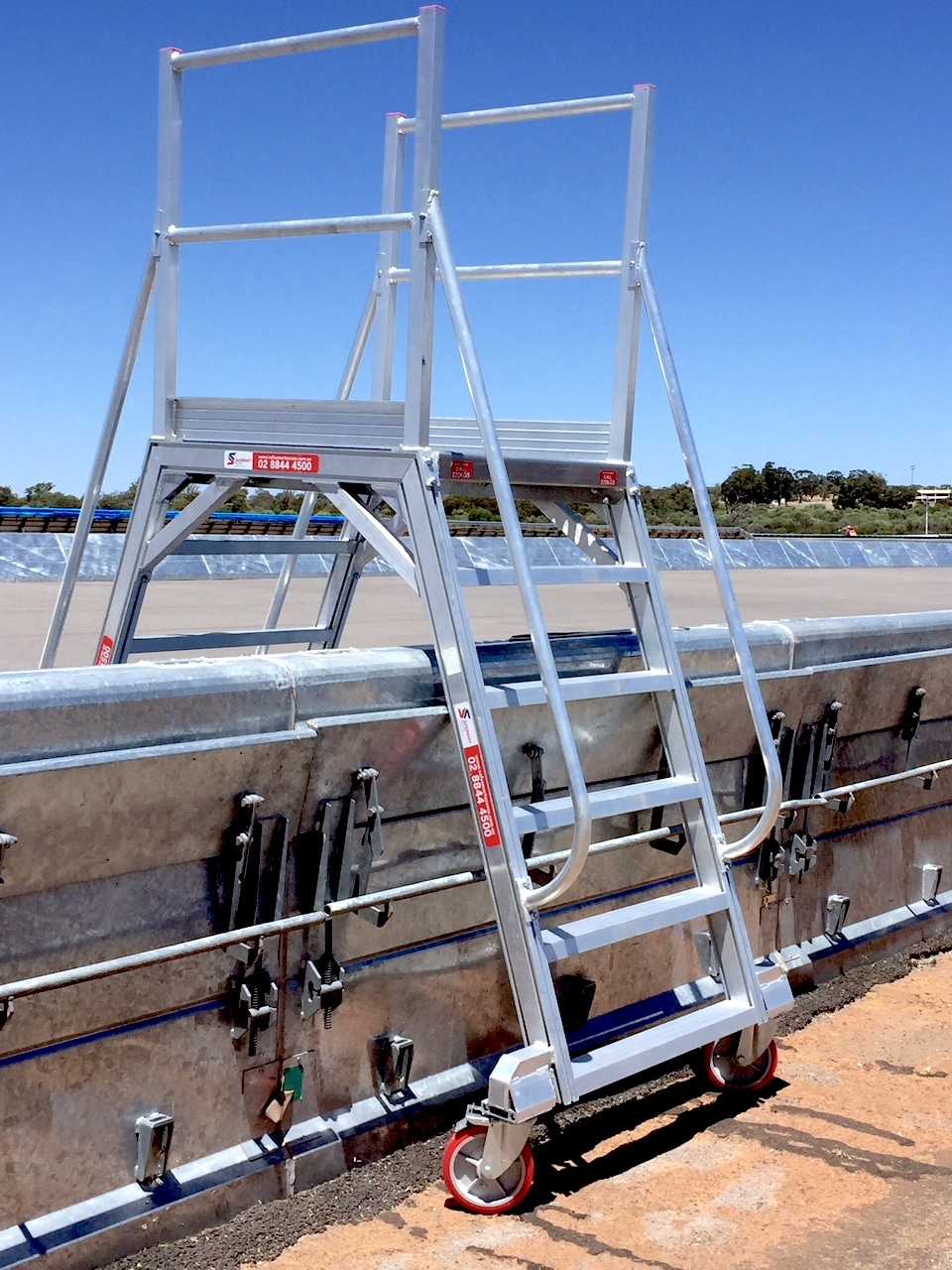

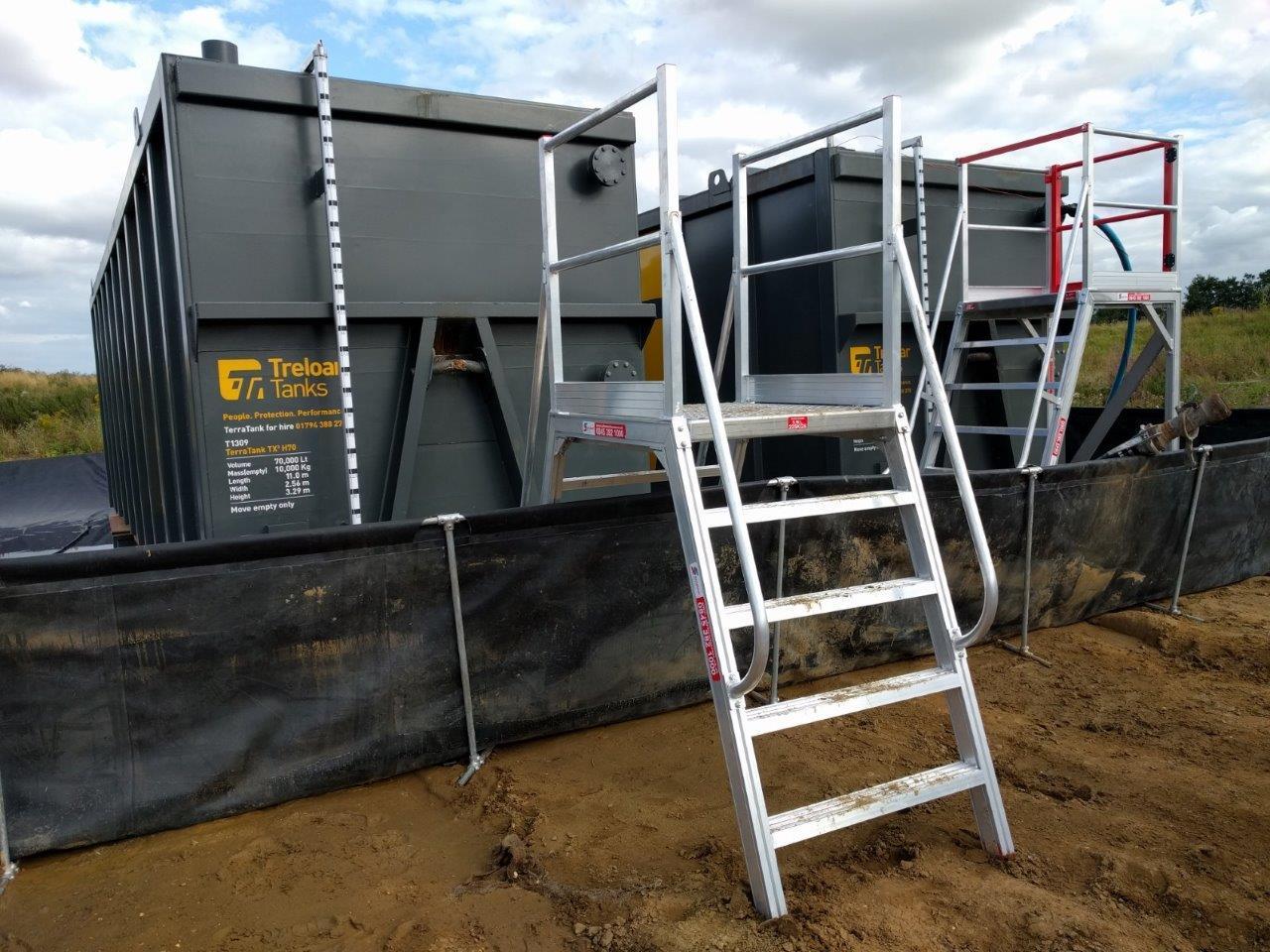

70° Angled Stepover Platforms

  • 70 Degree ladder step height is 280mm

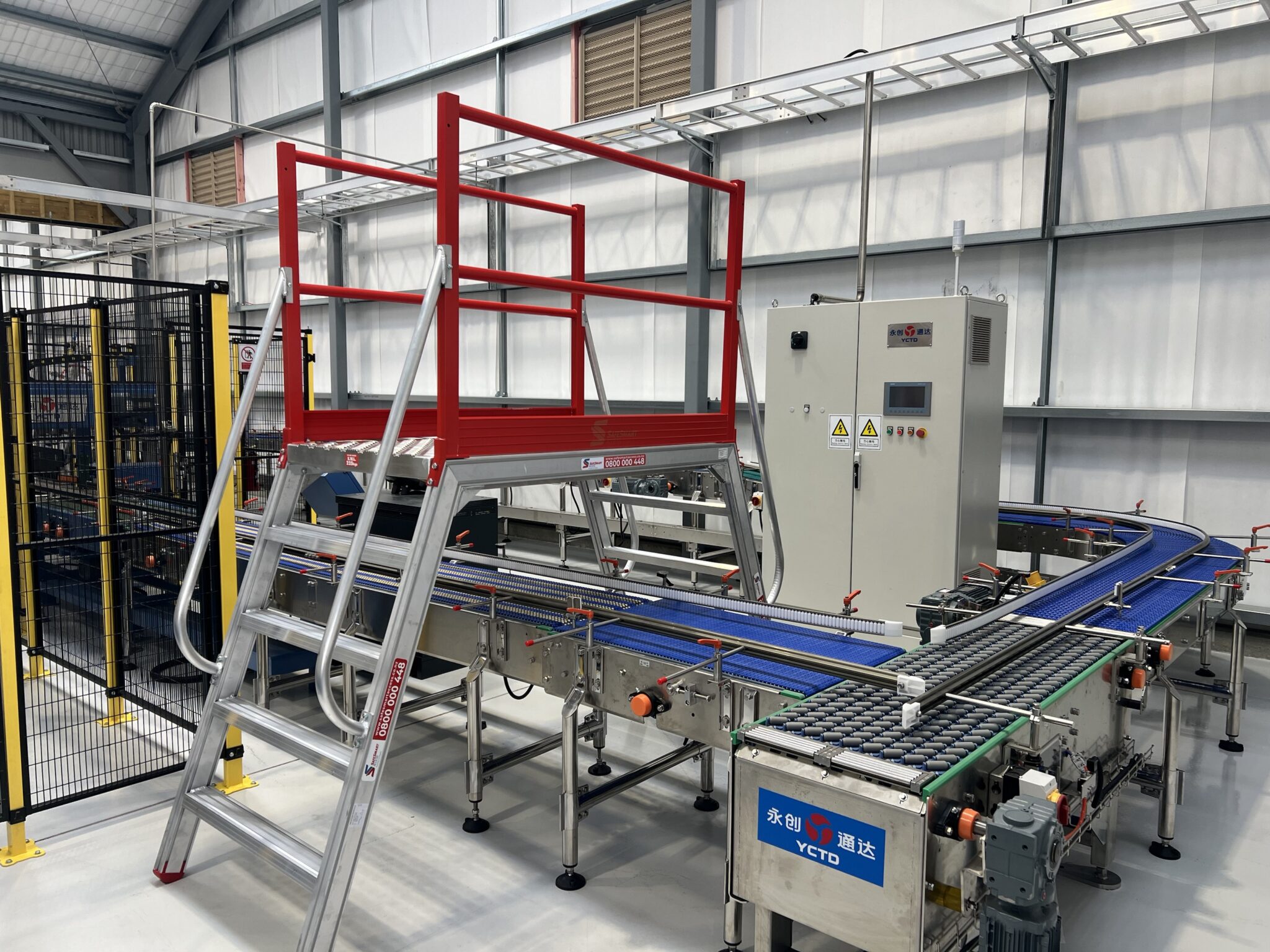

  • Great for access over pipes, conveyors and machinery etcetera
  • Ladder Width: 800mm

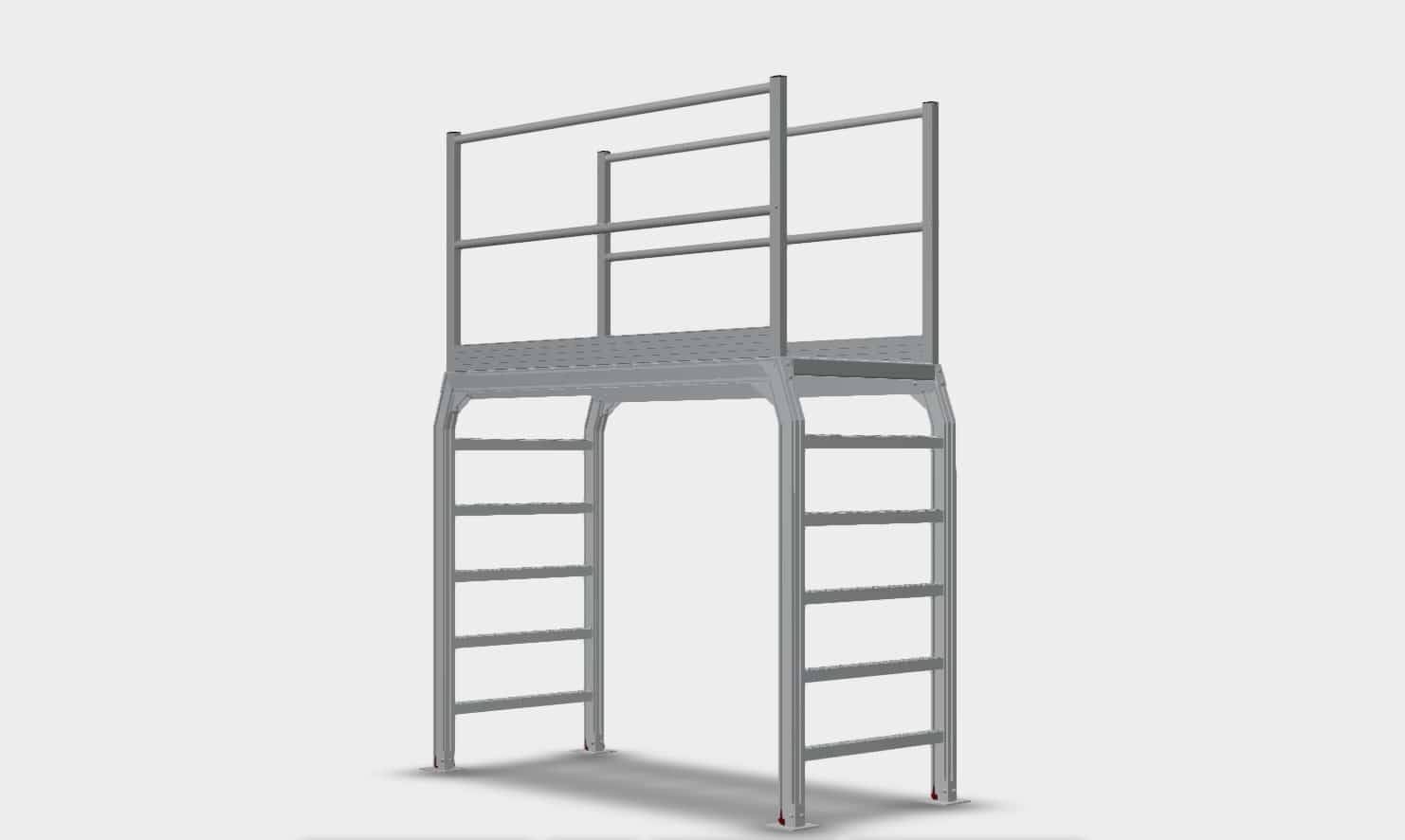

Vertical Stepover Platforms

  • Vertical ladder step height is 280mm.
  • The top of the vertical ladder stiles are angled to match the standard platform bridge
  • Ideal for tight spaces or when access
  • Ladder Width 800mm

Enquire about the system as a whole by enquiring from this page.

  • Great for access over pipes, conveyors and machinery etcetera
  • Enhances safety and efficiency
  • Perforated plate decks for superior traction, and to allow dirt & grease to easily fall through
  • Light and easy to move around. Standard rubber feet can also be changed to retro-fit base plates which will bolt to the support surface
  • Configure your own Modular Stepover Platforms - Specify the step height, step angle, deck length & the fittings that you need
  • Steps angles available at 45°, 70° and vertical configurations
SKU: 11143007
Modular Stepover Component - Fixed Bolt-in End Panel 1.0mH x 0.9mW
SKU: 210139
AdaptaSpan Modular Bolt On Height Adjustment Pack Pair
SKU: STO45037
Modular Stepover Component - 45° Stairs | 373mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 373mm
SKU: STO45056
Modular Stepover Component - 45° Stairs | 560mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 560mm
SKU: STO45085
Modular Stepover Component - 45° Stairs | 850mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 850mm
SKU: STO45113
Modular Stepover Component - 45° Stairs | 1120mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 1120mm
SKU: STO45126
Modular Stepover Component - 45° Stairs | 1266mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 1266mm
SKU: STO45140
Modular Stepover Component - 45° Stairs | 1400mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 1400mm
SKU: STO45170
Modular Stepover Component - 45° Stairs | 1692mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 1692mm
SKU: STO45197
Modular Stepover Component - 45° Stairs | 1970mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 1970mm
SKU: STO45220
Modular Stepover Component - 45° Stairs | 2200mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 2200mm
SKU: STO45255
Modular Stepover Component - 45° Stairs | 2550mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Stair & Handrails
  • Platform Height : 2550mm
SKU: 11224013
Modular Stepover Component - Stepover Stair Brace to suit 1970mmH Platform with 45° Stairs
SKU: 11224014
Modular Stepover Component - Stepover Stair Brace to suit 2200mmH Platform with 45° Stairs
SKU: 11224015
Modular Stepover Component - Stepover Stair Brace to suit 2550mmH Platform with 45° Stairs
SKU: STO70113
Modular Stepover Component - 70° Ladder | 1120mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 4 Step Ladder & Handrails
  • Platform Height : 1120mm
SKU: STO70141
Modular Stepover Component - 70° Ladder | 1400mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 5 Step Ladder & Handrails
  • Platform Height : 1400mm
SKU: STO70169
Modular Stepover Component - 70° Ladder | 1700mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 6 Step Ladder & Handrails
  • Platform Height : 1700mm
SKU: STO70056
Modular Stepover Component - 70° Ladder | 560mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 2 Step Ladder & Handrails
  • Platform Height : 560mm
SKU: STO70085
Modular Stepover Component - 70° Ladder | 850mm Platform Height
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 3 Step Ladder & Handrails
  • Platform Height : 850mm
SKU: STOSL
Modular Stepover Component - Modular Short Leg
  • Complies to AS/NZS 1892 : 1996
  • Description: Modular Short Leg (ea.)
SKU: STO90BP
Modular Stepover Component - Permanent base plate set to suit vertical ladder. Set of two.
  • Complies to AS/NZS 1892 : 1996
  • Description: Permanent Base Plate set to suit Vertical Ladder. Set of two.
SKU: STO70BP
Modular Stepover Component - Permanent base plate set. Set of two.
  • Complies to AS/NZS 1892 : 1996
  • Description: Permanent Base Plate Set. Set of two.
SKU: STOPL10
Modular Stepover Component - Platform Bridge 1.0m(L) x 0.8m(W)
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Platform Bridge 1.0mL x 0.8mW
SKU: STOPL15
Modular Stepover Component - Platform Bridge 1.5m(L) x 0.8m(W)
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Platform Bridge 1.5mL x 0.8mW
SKU: STOPL20
Modular Stepover Component - Platform Bridge 2.0m(L) x 0.8m(W)
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Platform Bridge 2.0mL x 0.8mW
SKU: STOPL40
Modular Stepover Component - Platform Bridge 4.0m(L) x 0.8m(W)
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Platform Bridge 4.0mL x 0.8mW
SKU: STOPL60
Modular Stepover Component - Platform Bridge 6.0m(L) x 0.8m(W)
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Platform Bridge 6.0mL x 0.8mW
SKU: STOPL06
Modular Stepover Component - Stepover Platform Bridge 0.6m(L) x 0.8m(W)
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover Platform Bridge 0.6mL x 0.8mW
SKU: STOLVXHR04
Modular Stepover Component - Vertical Ladder | Platform Height 1120mm
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 4 Step 90deg Ladder & Handrails
  • Platform Height : 1120mm
SKU: STOLVXHR05
Modular Stepover Component - Vertical Ladder | Platform Height 1400mm
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 5 Step 90deg Ladder & Handrails
  • Platform Height : 1400mm
SKU: STOLVXHR06
Modular Stepover Component - Vertical Ladder | Platform Height 1700mm
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 6 Step 90deg Ladder & Handrails
  • Platform Height : 1700mm
SKU: STOLVXHR02
Modular Stepover Component - Vertical Ladder | Platform Height 560mm
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 2 Step 90deg Ladder & Handrails
  • Platform Height : 560mm
SKU: STOLVXHR03
Modular Stepover Component - Vertical Ladder | Platform Height 850mm
  • Complies to AS/NZS 1892 : 1996
  • Description: Stepover 3 Step 90deg Ladder & Handrails
  • Platform Height : 850mm

For all ground-based obstacles and trip hazards—from pipelines to machinery—and access to site offices and other temporary structures, Modular Stepover Platforms bring added efficiency and safety to the work area. For most applications, SafeSmart’s modular elements go together to create a large choice of step and platform configurations, for use in construction, oil and gas, utilities and more.

SafeSmart can also incorporate these elements into a more customised system to suit your access needs perfectly, via our own in-house design and manufacture teams.

All stepovers and separate components—base plates, vertical and ladders and platforms—are built tough from high-grade box section aluminium for strength and weather resistance. And tough rubber feet can be used on ladders for less-permanent situations. Supplied disassembled for ease of install in tight locations.

Our Stepover Platforms are available in 3 standard step angles:

45° Angled Stepover Platforms

  • The 45 degree angle of access stairs are ideal for high traffic areas
  • Keep hands free whilst moving over bridge
  • 220mm deep stair treads for comfortable access to the platform
  • Stair treads are ridged for safety and grip in all site condition

70° Angled Stepover Platforms

  • 70 Degree ladder step height is 280mm
  • Great for access over pipes, conveyors and machinery etcetera
  • Ladder Width: 800mm

Vertical Stepover Platforms

  • Vertical ladder step height is 280mm.
  • The top of the vertical ladder stiles are angled to match the standard platform bridge
  • Ideal for tight spaces or when access
  • Ladder Width 800mm

Enquire about the system as a whole by enquiring from this page.
