In this example, our client needed to access to mobile cooling units on the truck bodies, above the cab, on a range of trucks.

SafeSmart took specifications and measurements of the product, assess the surrounding area for dangers and to create a product with the appropriate footprint, and then designed and built this platform.

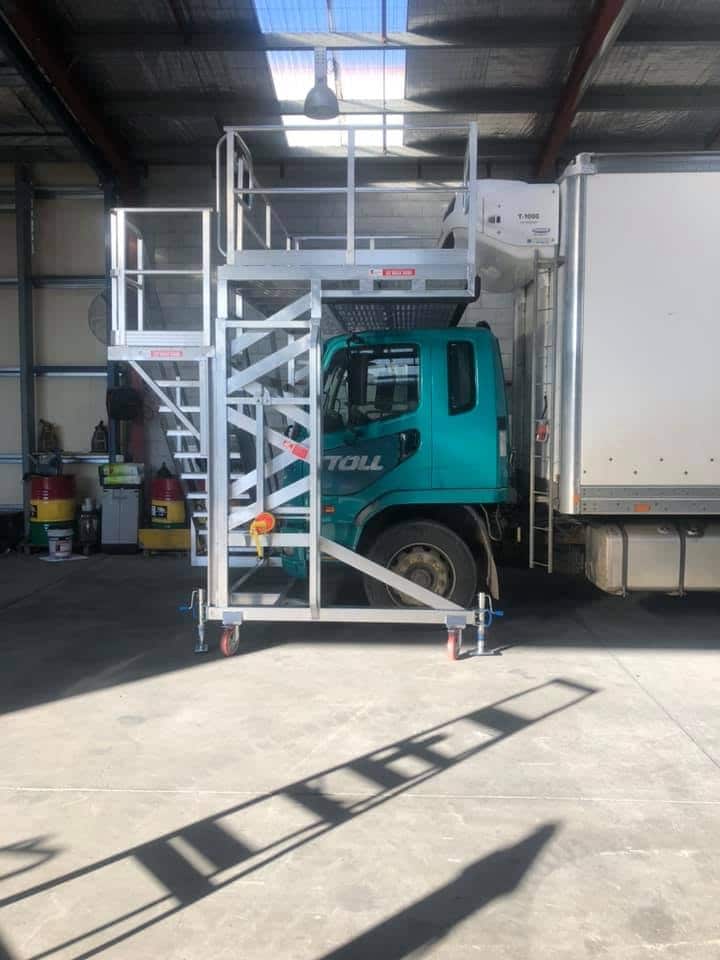

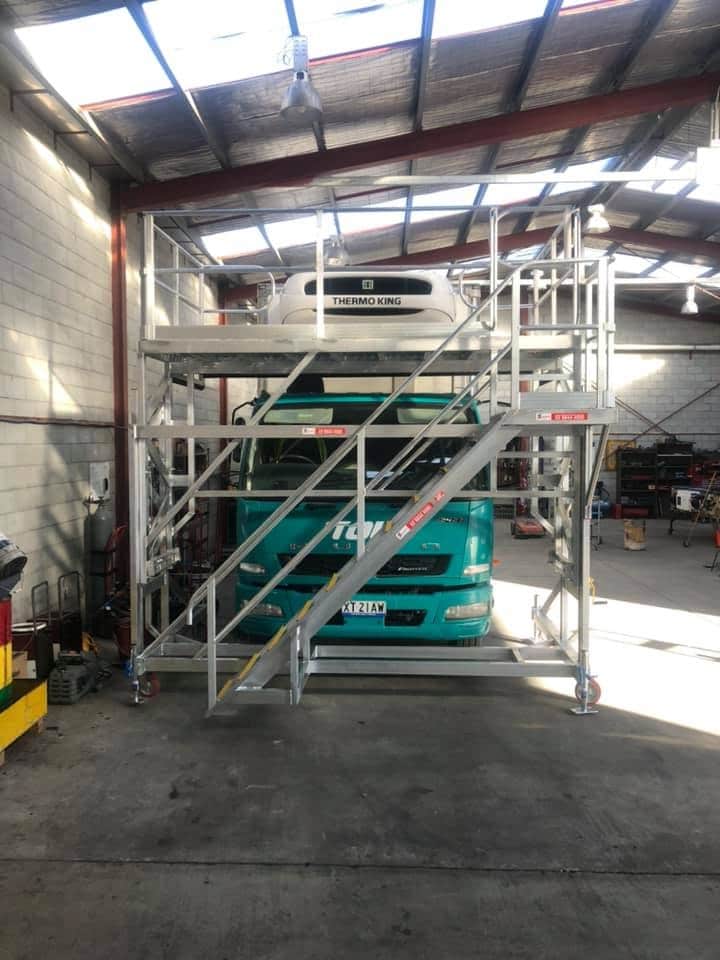

This 3.5mH x 1.9mW x 3.6mL mobile, hand winching height adjustable platform cantilevered over the truck bodies so that personnel could get to the cooling units. The height adjustment capability is 1.2m ranging between 2.3m – 3.5m

The platform has been designed to ensure that the frame doesn’t protrude into other workshop bays beside the truck – for efficient use of workshop space.

The large cantilever and fast adjustment with a manual winch meant the platform could be configured very quickly and safely by one person, and moved into place over the corresponding truck body.

Click Add to Quote or Contact Us now.

SafeSmart Access has designed and manufactured many other systems like this and offer a range of ongoing products for the rail manufacturing and maintenance industries.
