EasyDeck Edge Protection
EasyDeck Edge ProtectionEasyDeck Edge Protection

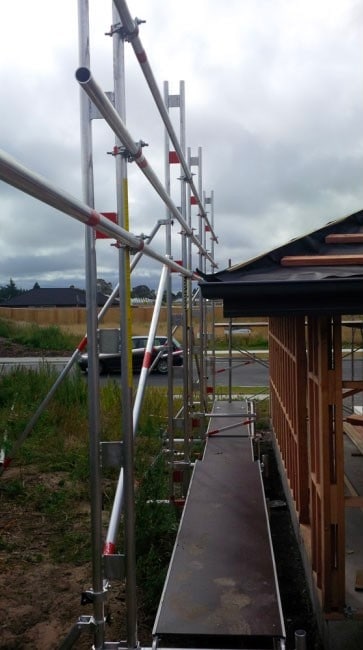

EasyDeck Edge Protection- Protect from roof falls while working on the soffit and wall of the building
- A high strength, lightweight welded aluminium structure
- Free-standing system - does not require any fixing in, in most cases
- Fast, two person set up
- The system incorporates standard SafeSmart aluminium scaffold components, such as guardrails, and platforms, save money by adding to the system you already have
- Certified aluminium or wooden planks can also be, used to create a work platform
- Height adjustable screw jacks allow for uneven ground
- Can also be put on wheels and utilised in modules, provide access edge protection when working on structures such as portable buildings

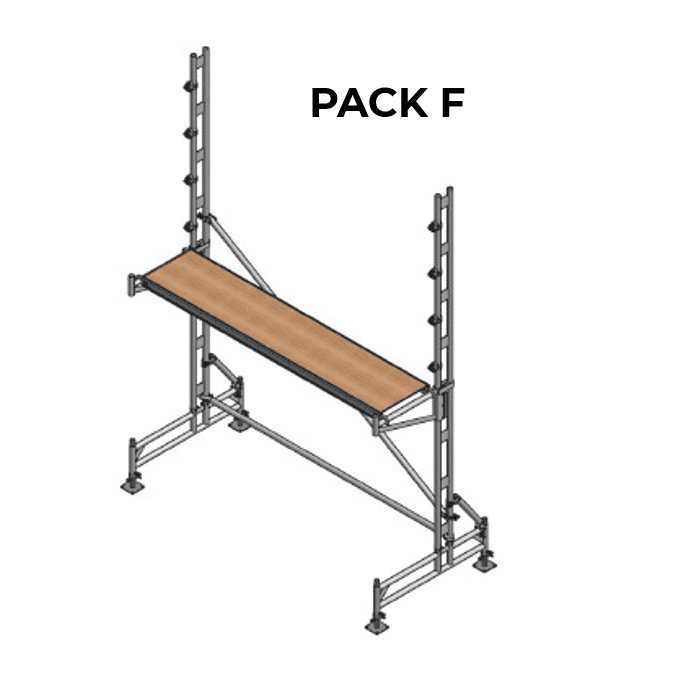

PACK F - 3M STARTER BAY
* Toe boards are required if the platform is over 2m high
* Timber scaffold planks can be used to create a toe board
INCLUSIONS:
IN48 - EasyRail internal joining spigot x 4
BPA605 - Adjustable base plate x 4
AER FRAME - Alloy EasyRail base frame x 2
AER610.650 - 0.65m alloy EasyRail cantilever bracket x 2
PFS440 - 3.0m standard platform x 1
AER300.400 - 4.0m Alloy EasyRail truss, roof post x 2
AER100.300 - 3.0m Alloy EasyRail diagonal brace x 1
GRB430 - 3.0m grasper guardrail x 1
FX48 - EasyRail fixed double coupler x 8

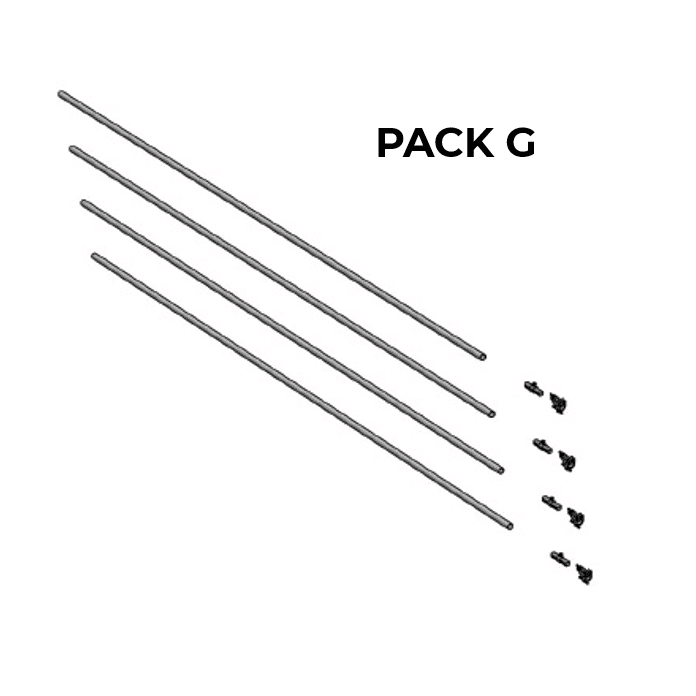

PACK G - 6M HANDRAIL
INCLUSIONS:
AER350.600 - Alloy EasyRail Tube x 4
IN48 - EasyRail Internal Joining Spigot x 4
FX48 - EasyRail Fixed Double Coupler x 4

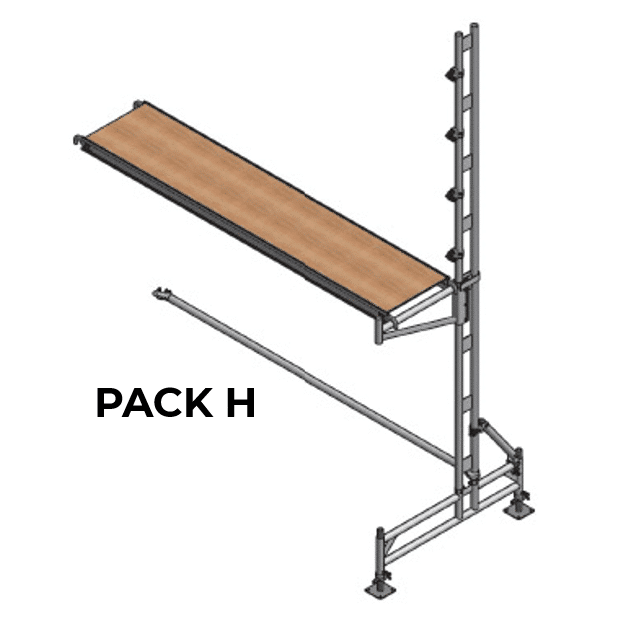

PACK H - 3M ADD ON BAY
* Outriggers must be used every 3 bays minimum
* Diagonals must be used every 4 bays minimum
* 4.0m x 6.0m guardrails need to be added every second bay
INCLUSIONS:
GRB430 - 3.0m grasper guardrail x 1
PFS440 - 3.0m standard platform x 1
AER300.400 - 4.0m Alloy EasyRail truss, roof post x 1
IN48 - EasyRail internal joining spigot x 2
BPA605 - Adjustable base plate x 2
AER FRAME - Alloy EasyRail base frame x 1
FX48 - EasyRail fixed double coupler x 4
AER610.650 - 0.65m Alloy EasyRail cantilever bracket x 1

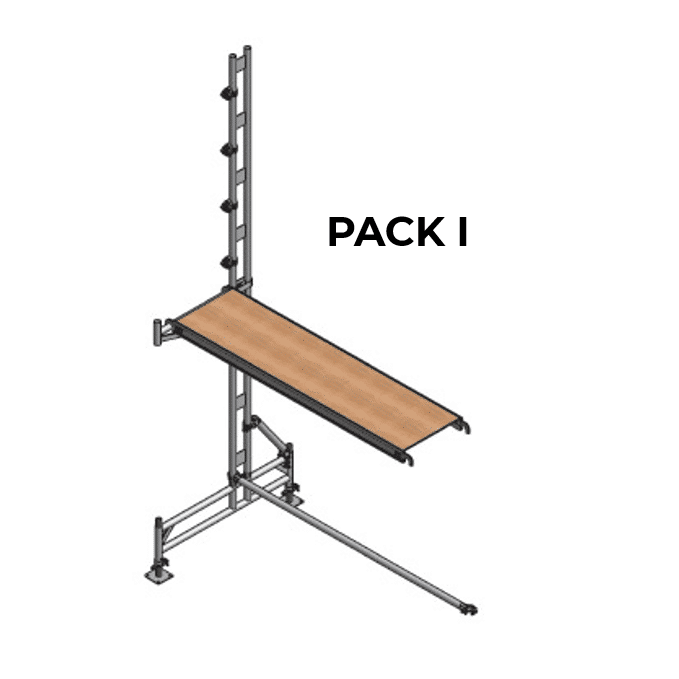

PACK I - 2.4M ADD ON BAY
INCLUSIONS:
GRB420 - 2.4m grasper guardrail x 1
PFS435 - 2.4m standard platform x 1
AER300.400 - 4.0m Alloy EasyRail truss, roof post x 1
IN48 - EasyRail internal joining spigot x 2
AER FRAME - Alloy EasyRail base frame x 1
BPA605 - Adjust. Base Plate x 2
FX48 - EasyRail Fixed Double Coupler x 4
AER610.650 - 0.65m Alloy EasyRail cantilever bracket X 1

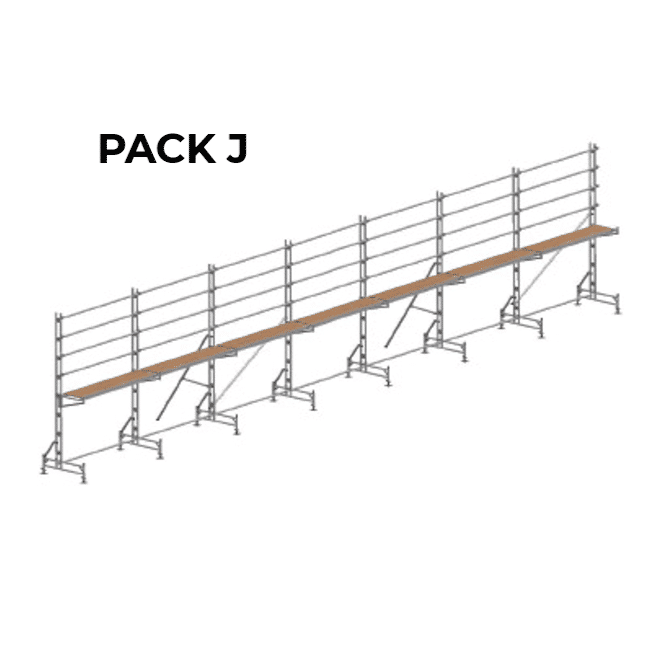

PACK J - 21M STRAIGHT PLATFORM EDGE PROTECTION
INCLUSIONS:
IN48 - EasyRail internal joining spigot x 28
AER - FRAME Alloy EasyRail base frame x 8
BPA605 - Adjust. Base Plate x 16
AER610.650 - 0.65m Alloy EasyRail cantilever bracket x 8
PFS440 - 3.0m standard platform x 7
AER300.400 - 4.0m Alloy EasyRail truss, roof post x 8
AER100.300 - 3.0m Alloy EasyRail diagonal brace x 2
AER350.600 - Alloy EasyRail Tube x 14
GRB430 - 3.0m grasper guardrail x 7
FX48 - EasyRail Fixed Double Coupler x 32
ORG705 - Outrigger x 2

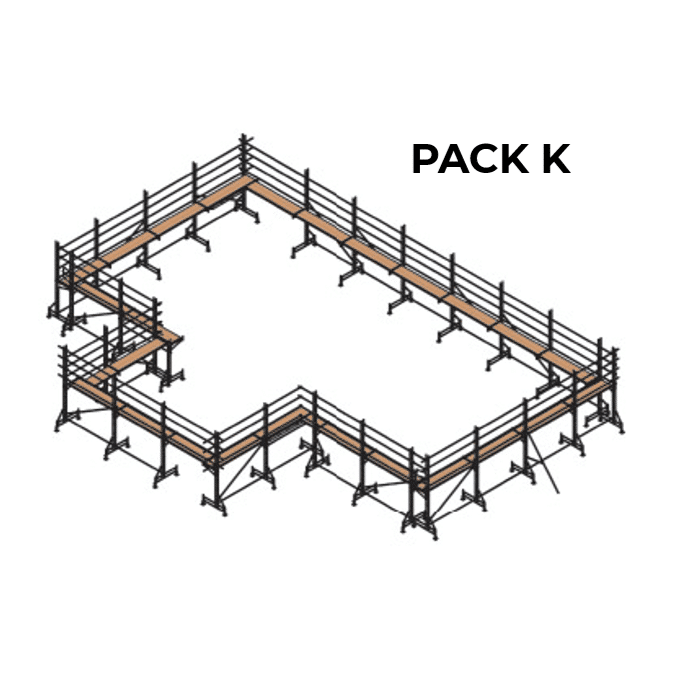

PACK K - 70M EASYDECK HOUSELOT
INCLUSIONS:
GRB420 - 2.4m Grasper Guardrail x 2
GRB430 - 3.0m Grasper Guardrail x 23
GRL300 - 3.0m Reinforced Grasper Ledger x 4
PFS410 - 1.0m Standard Platform x 1
PFS415 - 1.5m Standard Platform x 1
PFS435 - 2.4m Standard Platform x 2
PFS440 - 3.0m Standard Platform x 22
AER300.200 - 2.0m Alloy Easyrail Truss, Roof Post x 2
AER300.400 - 4.0m Alloy Easyrail Truss, Roof Post x 29
IN48 - Easyrail Internal Joining Spigot x 90
BPA605 - Adjust. Base Plate x 62
AER FRAME - Alloy Easyrail Frame x 31
FX48 - Easyrail Fixed Double Coupler x 144
AER610.650 - 0.65m Alloy Easyrail Cantilever Bracket x 31
AER100.300 - 3.0m Alloy Easyrail Diagonal Brace x 9
LAG0.5 - Ladder Access Gate x 2
AER350.600 - Alloy Easyrail Tube x 330
ORG705 - Outrigger x 4
EasyDeck is the ultimate platform access system that combines safety and efficiency with a simple 2-person set-up. Aluminium components are lightweight and modular and the system is compatible with the Easy Rail roof edge protection system, so you can set up both edge protection as well as a working platform, all in one system.

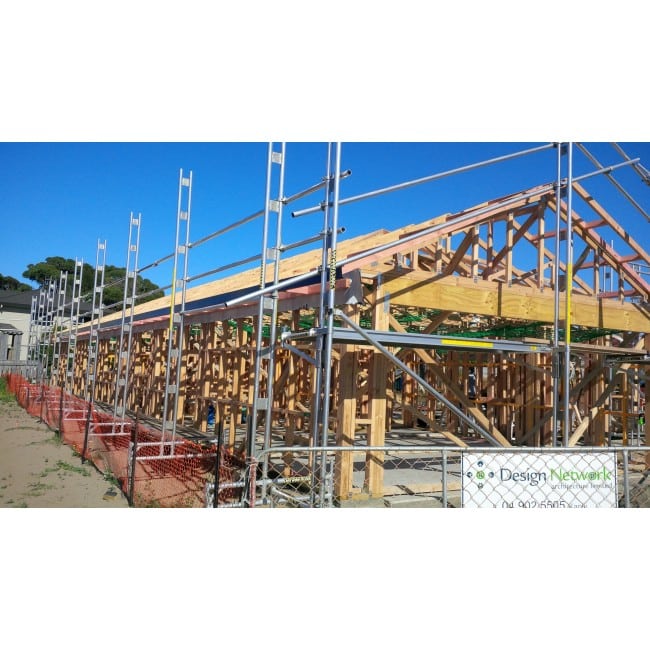

Free-standing, height adjustable base frames are positioned on the ground to evenly support the upright truss posts which are placed 2.4m or 3.0m apart, no more than 300mm out from the building exterior.
Using a pin and slot system, cantilever brackets are attached to the posts at any height to support certified aluminium or wooden planks. Using a combination of 2.4m and 3.0m bays, Easy Deck can completely surround the building for continuous safe access, or just cover a smaller section of the building.
Snaplock guardrails are easily attached to the posts to keep workers safe from falls, and gravity swing gates can be added at any section of the continuous unit, or at either end of a smaller section.
The EasyDeck system is also made up of some standard scaffolding equipment so you can save money by adding to the scaffold components you already have.
Enquire now if you are looking for a cost effective and compliant edge protection and work platform system.
Components available individually if required.
