Haul Truck Strut Pin Work Platform
Custom Haul Truck Strut Pin Access

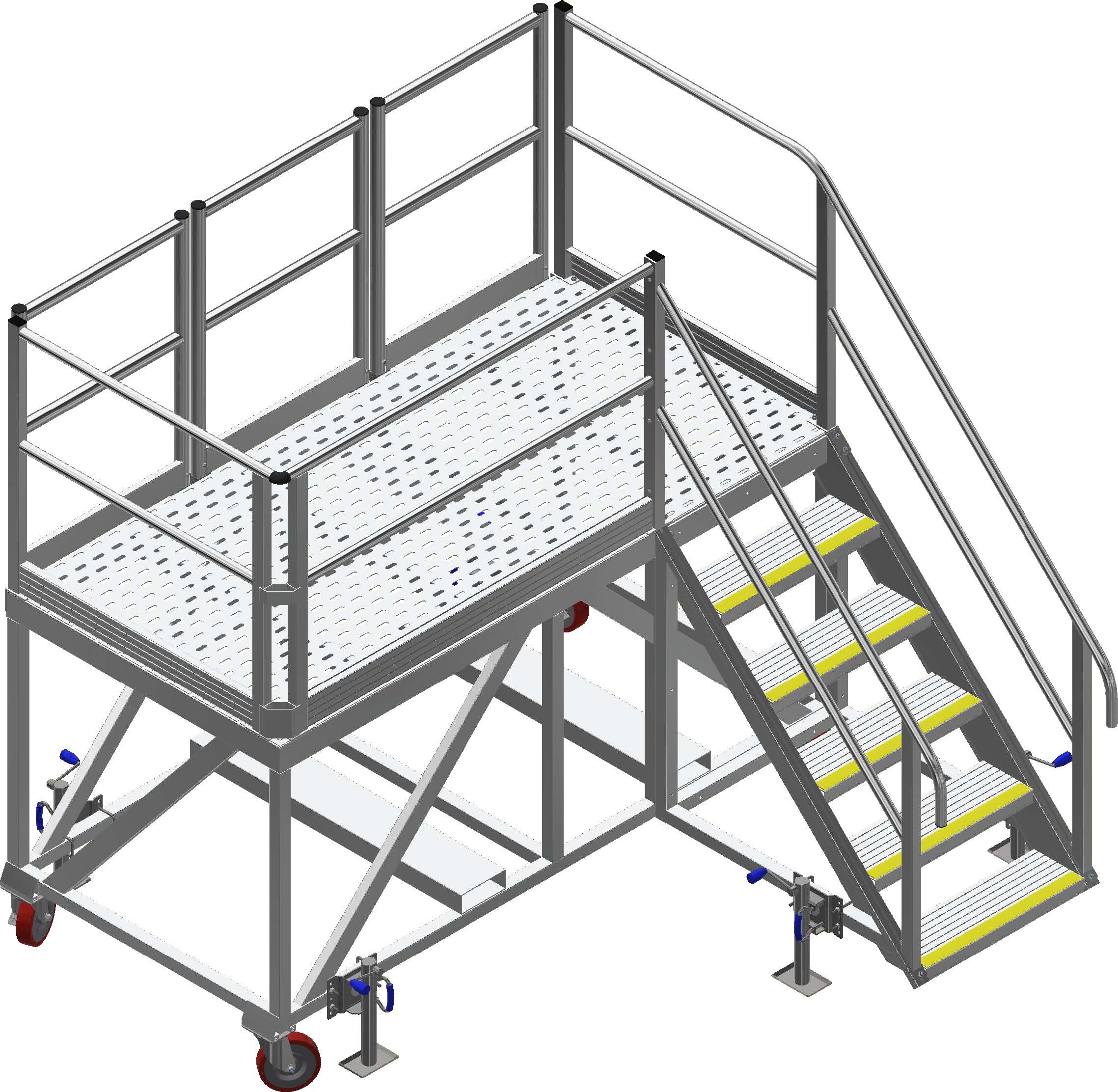

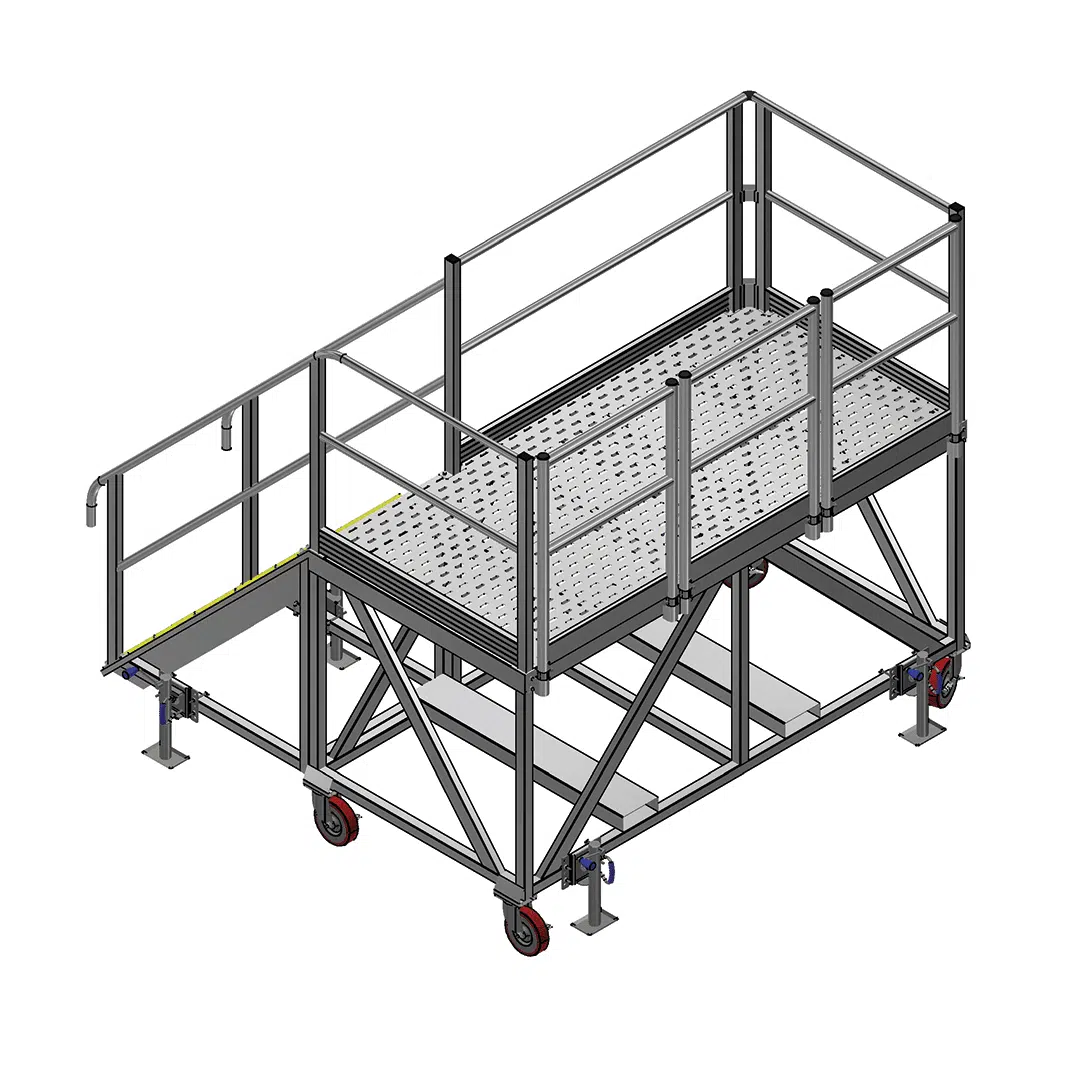

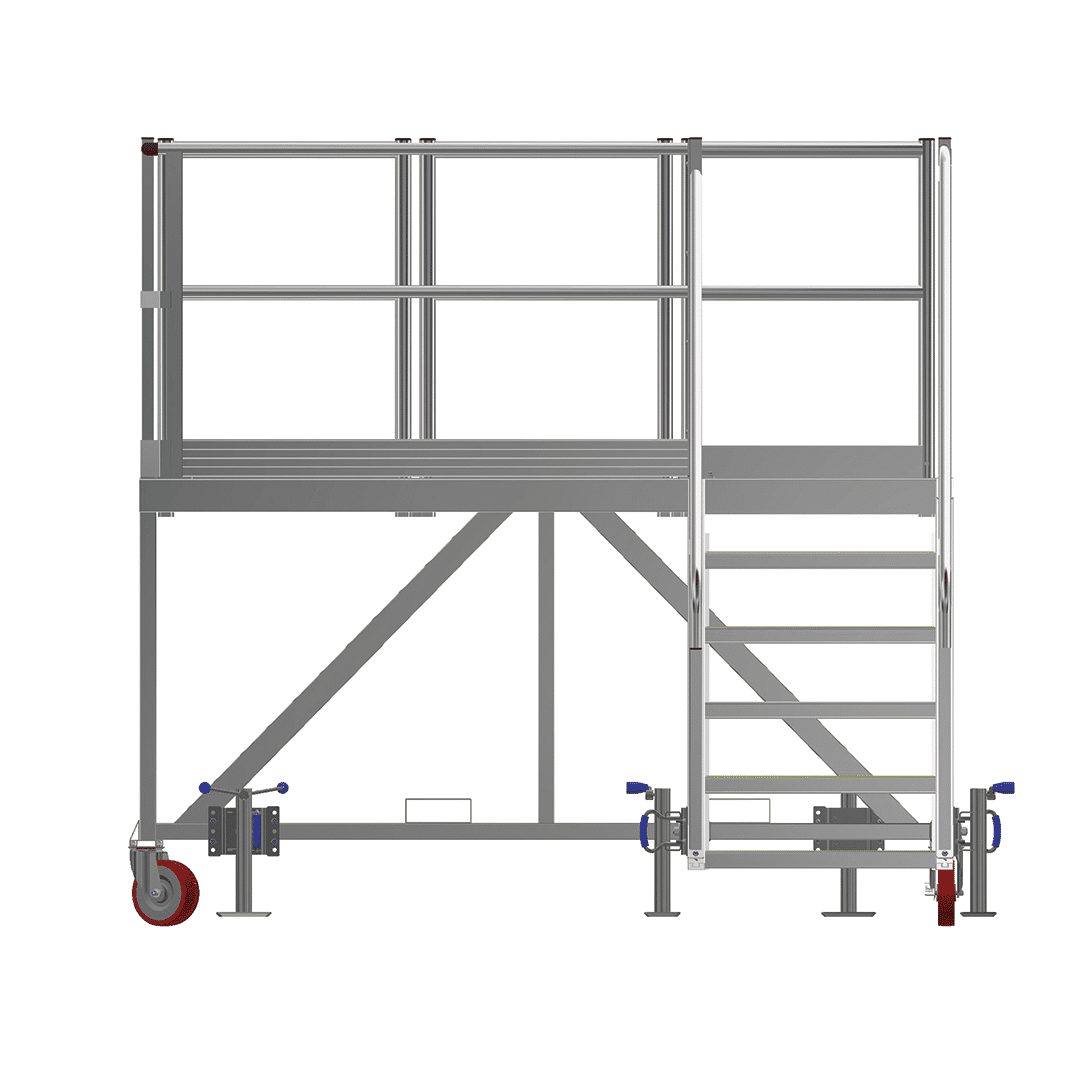

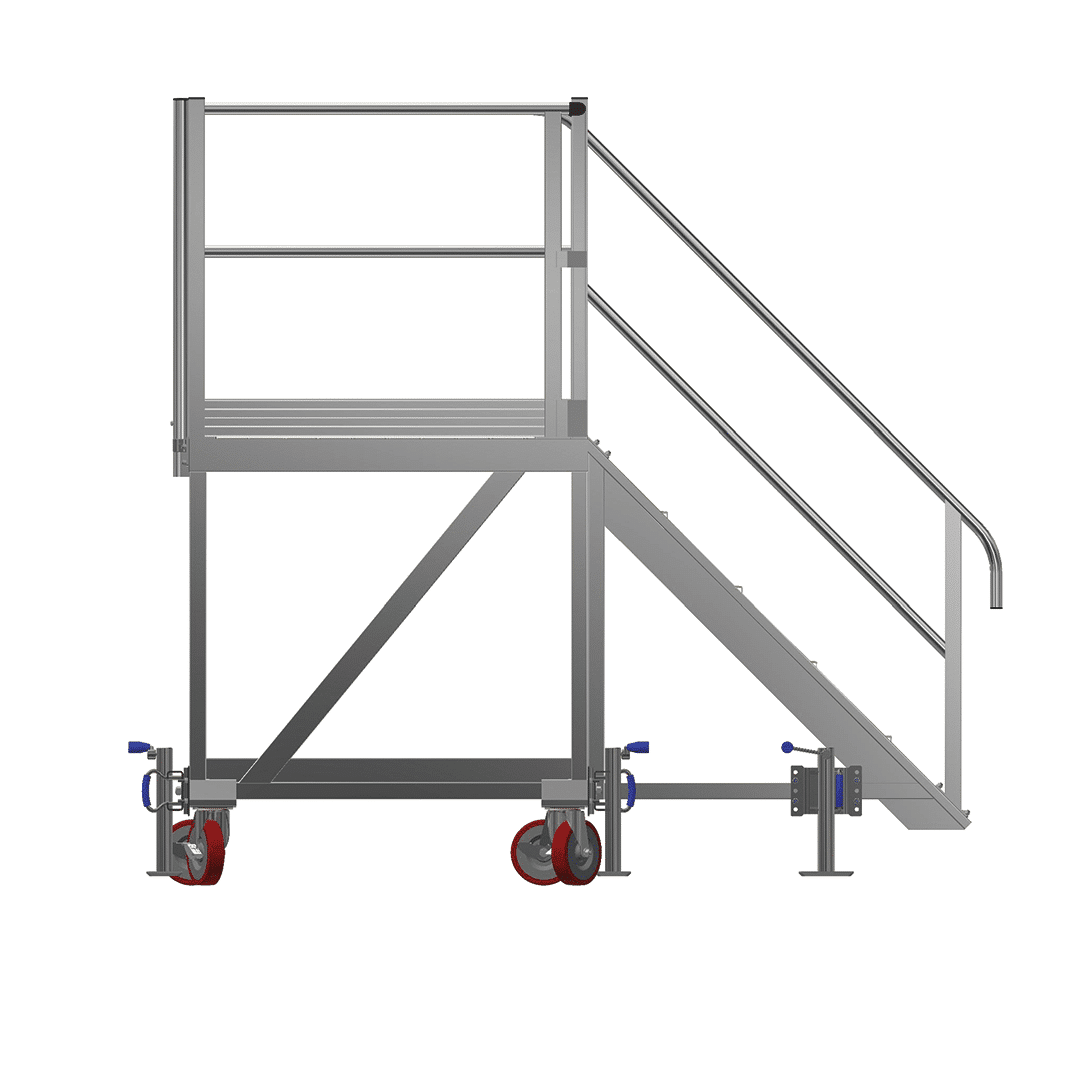

Haul Truck Strut Pin Work Platform
Custom Haul Truck Strut Pin Access- Dimensions: 1.2mL x 2.45mW x 1.35mH
- 45 degree stair access to the platform, for ease of access.
- Anti-skid nosing on all steps.
- Mobile on HD 200mm diameter swivel/braked plate castors with 4x height adjustable machine jacks.
- All guardrail frames attach to the platform via expanding spigots for quick removal.
- The leading edge has 3x guardrail frames that can be stored on the back of the platform.
- Perforated and swaged decking material.
- SWL 500kg.
This platform was designed for ease of access for users to the rear strut pins on the Komatsu 930e Truck. With removable guardrails on the leading edge, it gains the worker access direct into the area minimising the possibility of having to reach into the space.
- Dimensions: 1.2mL x 2.45mW x 1.35mH
- 45 degree stair access to the platform, for ease of access.
- Anti-skid nosing on all steps.
- Mobile on HD 200mm diameter swivel/braked plate castors with 4x height adjustable machine jacks.
- All guardrail frames attach to the platform via expanding spigots for quick removal.
- The leading edge has 3x guardrail frames that can be stored on the back of the platform.
- Perforated and swaged decking material.
- SWL 500kg.
