Cantilever Platform

Cantilever – From the Leaders in Smarter Access Platforms

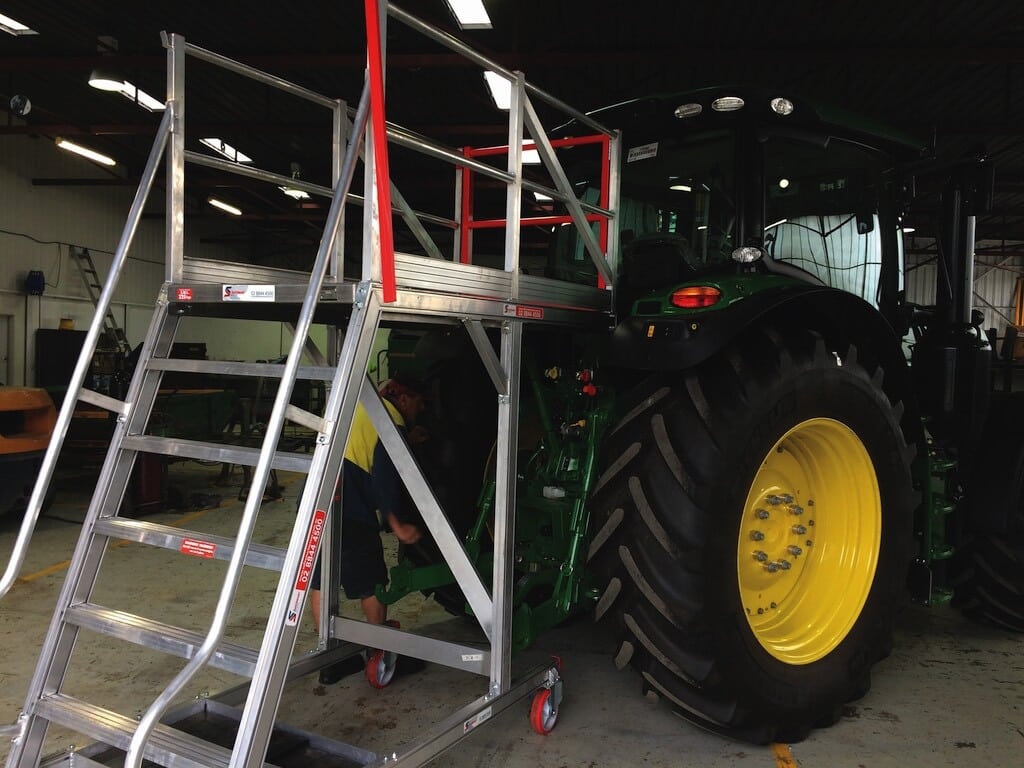

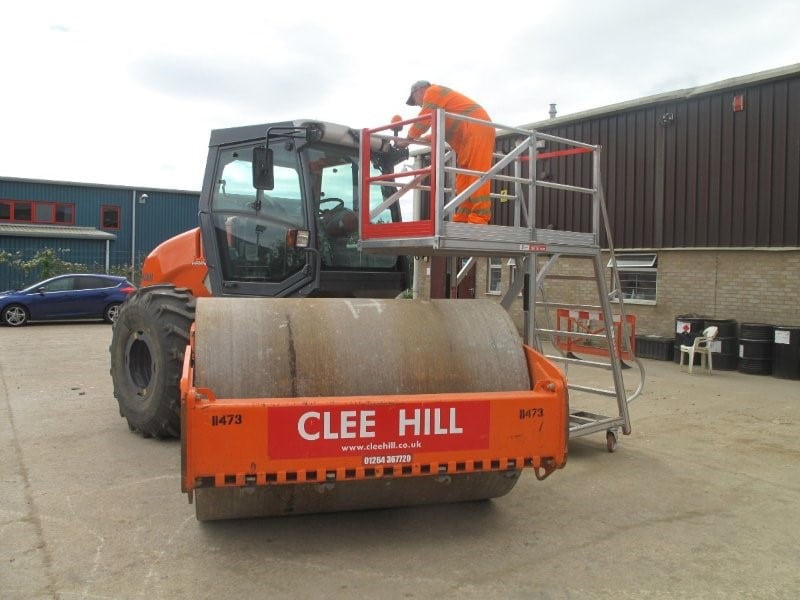

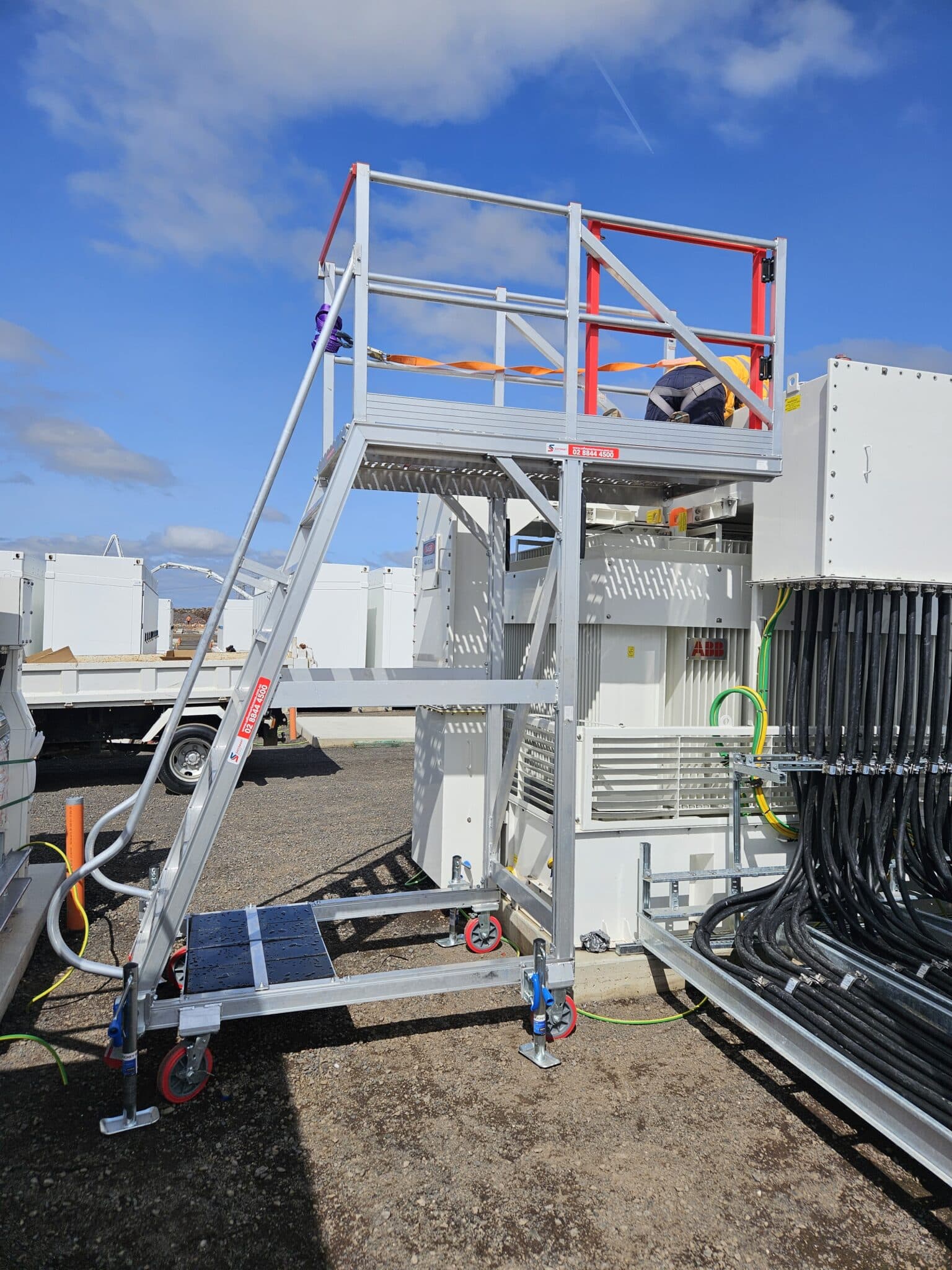

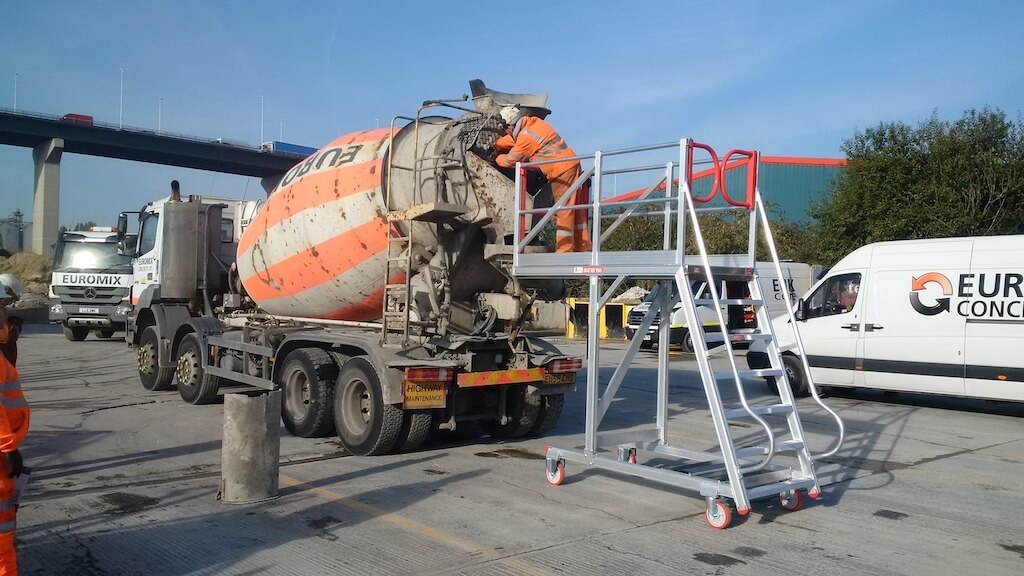

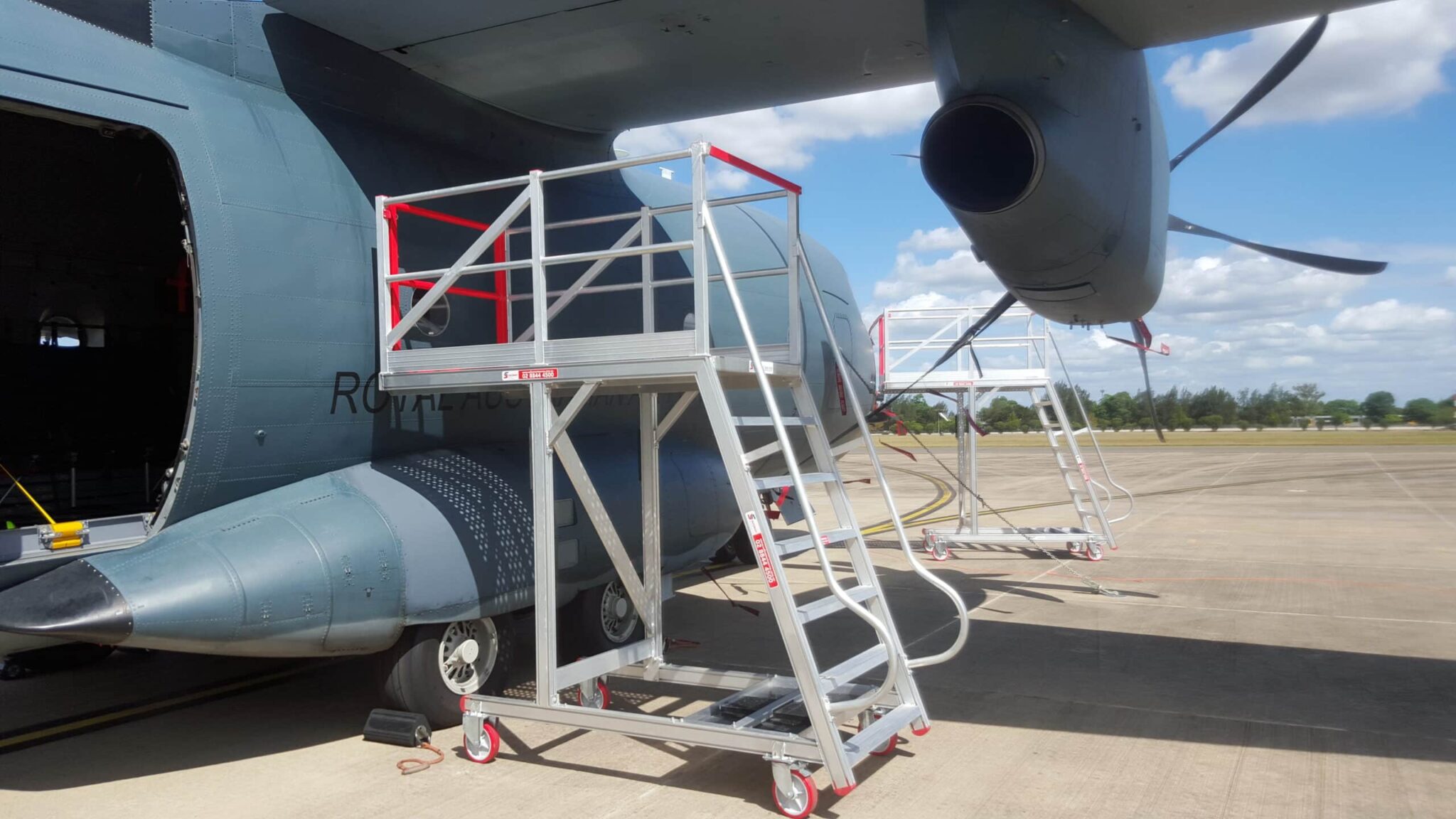

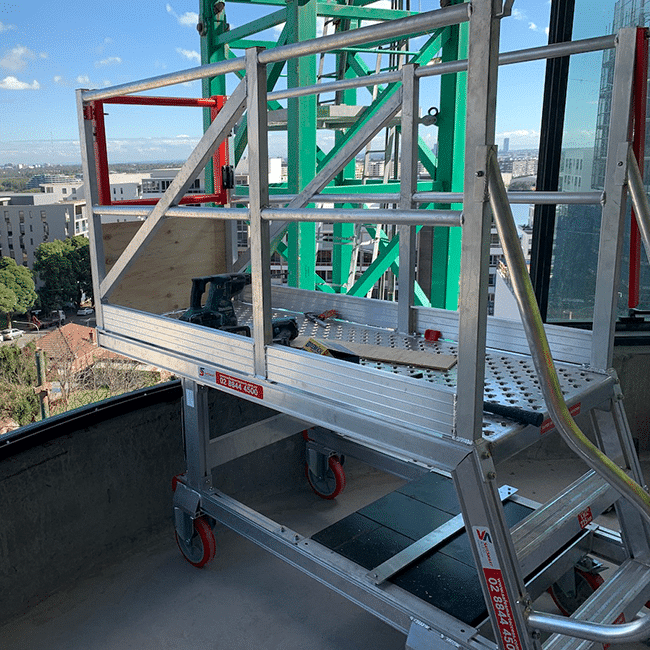

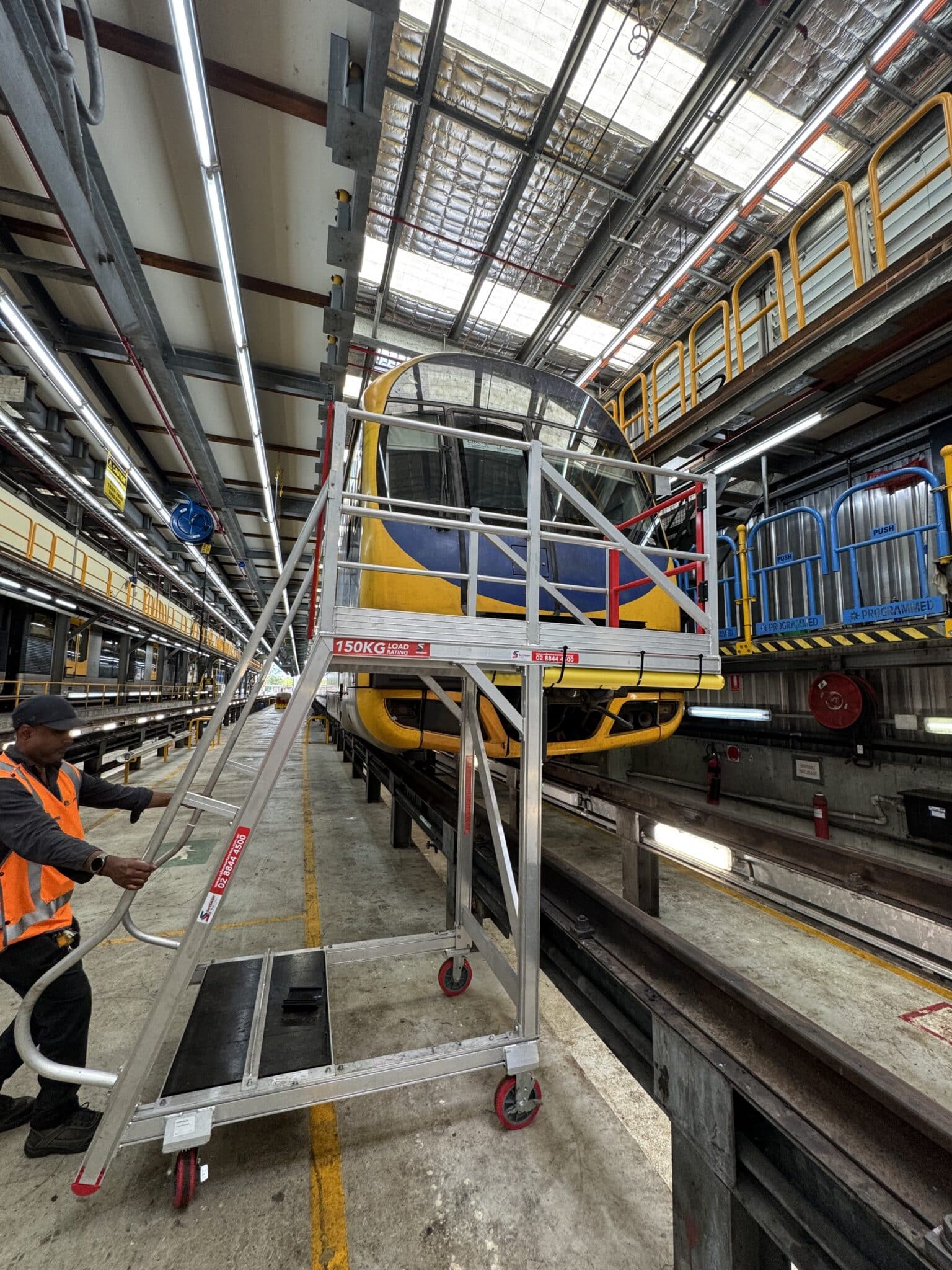

An essential tool for machinery service workshops, the Cantilever platform lets you get right into and up against your work area — no dangerous overreaching required. Built tough with a 225kg weight rating, a non-slip perforated deck and a thick aluminium frame, it’s purpose-built for rough workshop conditions while staying easy to manoeuvre.

The perforated deck gives reliable grip and excellent drainage, and the whole unit is made from high-grade aluminium — ultra-strong, weather-proof, and light enough to move by hand on its 200mm heavy-duty castors. A front access gate with a spring-loaded latch and a rear safety bar keep operators protected from falls at every step. Compliant with AS/NZS 1657:2013, the Cantilever access platform is available in models from 2-step to 14-step, so you can match the platform to the job.

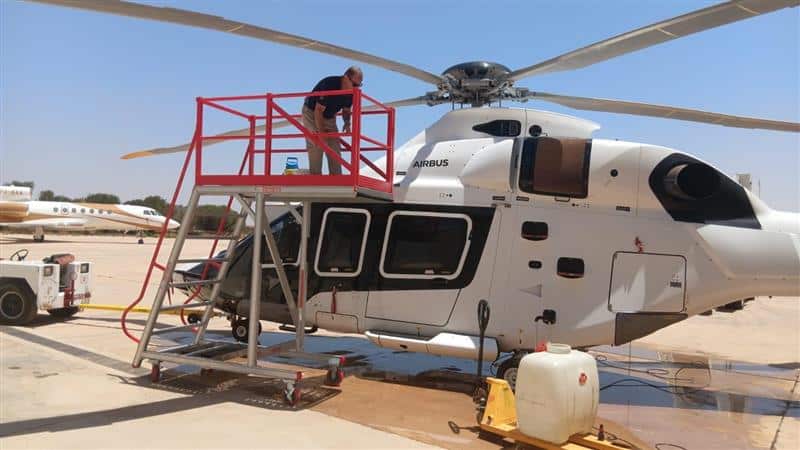

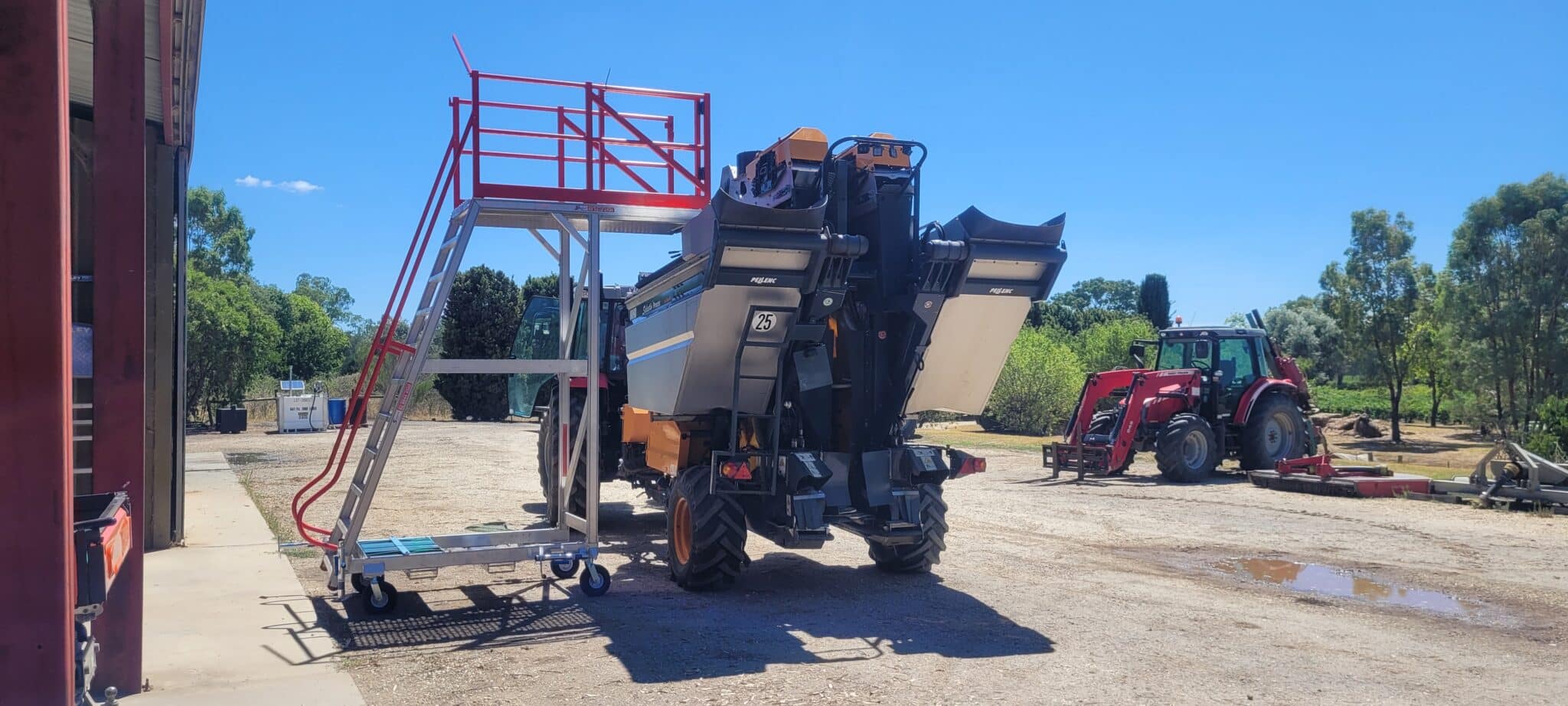

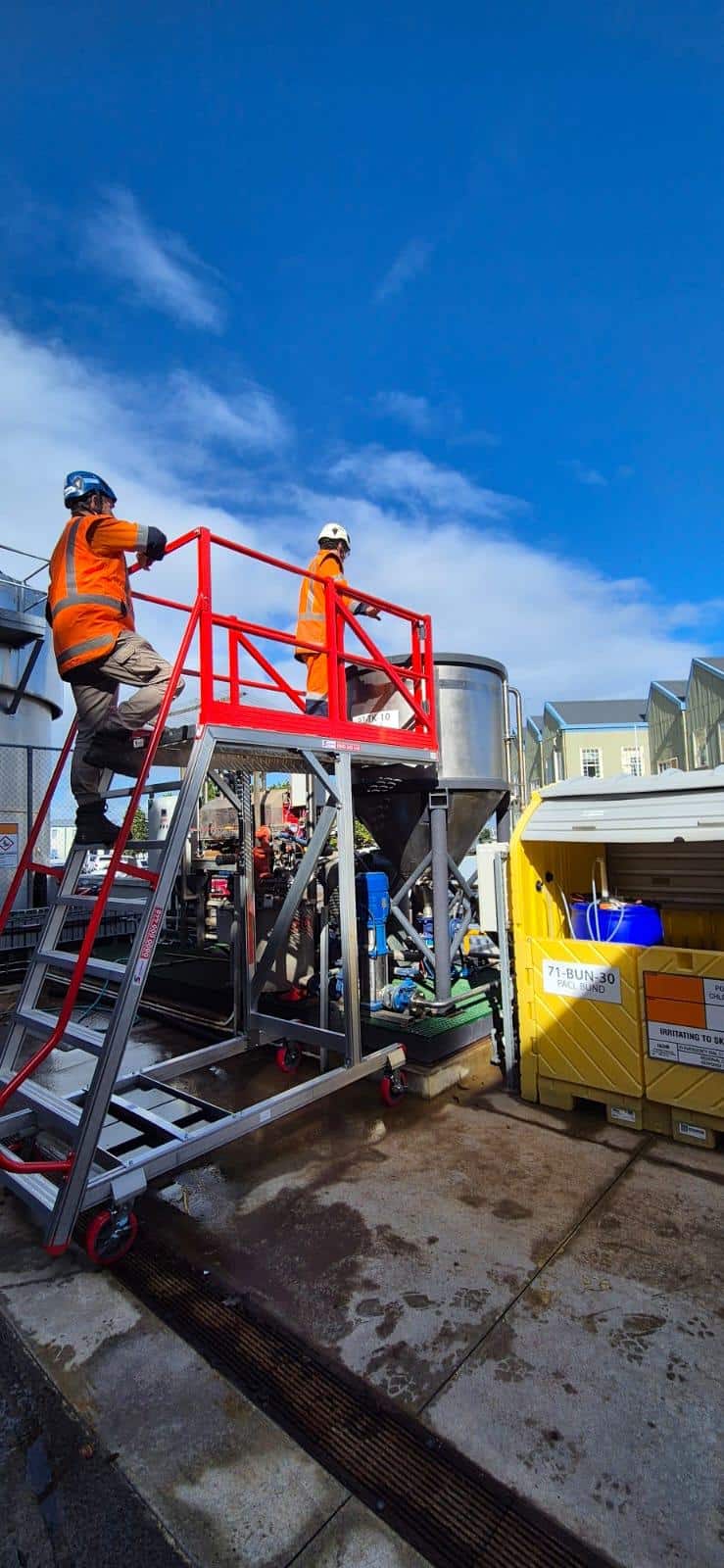

See the Cantilever platform in action here.

  • An essential tool for all machinery service workshops
  • Lets you work right up against your area without reaching out
  • Tough, non-slip perforated deck and thick aluminium frame
  • Full guard railing and gates for operator safety
  • 200mm heavy-duty, fully braked castors for easy manoeuvring
  • Available in 2-step to 14-step models
  • Complies with AS/NZS 1657:2013
  • An essential tool for all machinery service workshops
  • Allows you to get right into and up against your work area without reaching out from the Cantilever platform
  • Built tough, non-slip perforated deck and aluminium frame
  • Complies to AS/NZS 1892 : 1996
  • Full guard railing and gates for operator safety
  • 200mm fully braked, heavy duty castors for easy maneuvering
SKU: WHDPC02
Cantilever (2 Step)
  • Platform Height: 565mm
  • Platform Size: 800 x 1800mm
  • Steps: 2 Step
SKU: WHDPC03
Cantilever (3 Step)
  • Platform Height: 850mm
  • Platform Size: 800 x 1800mm
  • Steps: 3 Step
SKU: WHDPC04
Cantilever (4 Step)
  • Platform Height: 1130mm
  • Platform Size: 800 x 1800mm
  • Steps: 4 Step
SKU: WHDPC05
Cantilever (5 Step)
  • Platform Height: 1400mm
  • Platform Size: 800 x 1800mm
  • Steps: 5 Step
SKU: WHDPC06
Cantilever (6 Step)
  • Platform Height: 1700mm
  • Platform Size: 800 x 1800mm
  • Steps: 6 Step
SKU: WHDPC07
Cantilever (7 Step)
  • Platform Height: 1970mm
  • Platform Size: 1000 x 2000mm
  • Steps: 7 Step
SKU: WHDPC08
Cantilever (8 Step)
  • Platform Height: 2250mm
  • Platform Size: 1000 x 2000mm
  • Steps: 8 Step
SKU: WHDPC09
Cantilever (9 Step)
  • Platform Height: 2540mm
  • Platform Size: 1000 x 2000mm
  • Steps: 9 Step
SKU: WHDPC10
Cantilever (10 Step)
  • Platform Height: 2828mm
  • Platform Size: 1000 x 2000mm
  • Steps: 10 Step
SKU: WHDPC11
Cantilever (11 Step)
  • Platform Height: 3100mm
  • Platform Size: 1000 x 2000mm
  • Steps: 11 Step
SKU: WHDPC12
Cantilever (12 Step)
  • Platform Height: 3300mm
  • Platform Size: 1000 x 2000mm
  • Steps: 12 Step
SKU: WHDPC13
Cantilever (13 Step)
  • Platform Height: 3600mm
  • Platform Size: 1000 x 2000mm
  • Steps: 13 Step
SKU: WHDPC14
Cantilever (14 Step)
  • Platform Height: 3950mm
  • Platform Size: 1000 x 2000mm
  • Steps: 14 Step

Product Description

An essential tool for machinery service workshops, the Cantilever platform lets you get right into and up against your work area — no dangerous overreaching required. Built tough with a 225kg weight rating, a non-slip perforated deck and a thick aluminium frame, it’s purpose-built for rough workshop conditions while staying easy to manoeuvre.

The perforated deck gives reliable grip and excellent drainage, and the whole unit is made from high-grade aluminium — ultra-strong, weather-proof, and light enough to move by hand on its 200mm heavy-duty castors. A front access gate with a spring-loaded latch and a rear safety bar keep operators protected from falls at every step. Compliant with AS/NZS 1657:2013, the Cantilever access platform is available in models from 2-step to 14-step, so you can match the platform to the job.

See the Cantilever platform in action here.

  • An essential tool for all machinery service workshops
  • Lets you work right up against your area without reaching out
  • Tough, non-slip perforated deck and thick aluminium frame
  • Full guard railing and gates for operator safety
  • 200mm heavy-duty, fully braked castors for easy manoeuvring
  • Available in 2-step to 14-step models
  • Complies with AS/NZS 1657:2013
