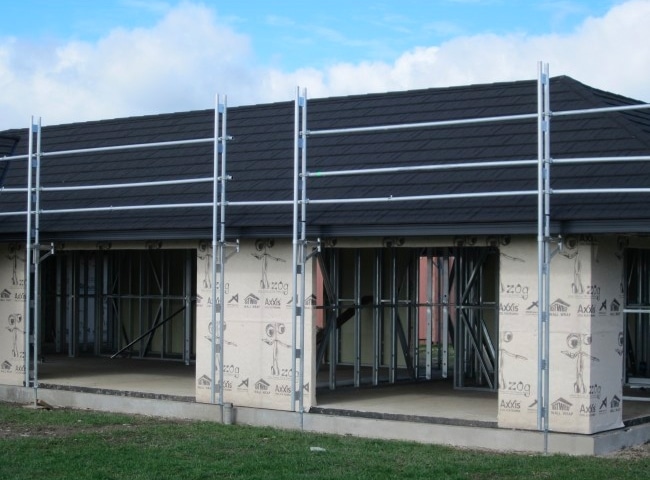

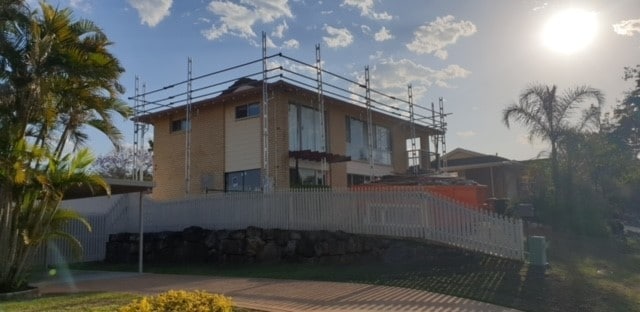

A favourite with roofing contractors such as roof plumbers, restorers and asbestos removal contractors.
The system is designed to be used without fixing to the building that is being worked on, meaning that no patching is required after use and no sheet or tile removal is required, as is the case with standard edge protection, which fixes to the rafters.

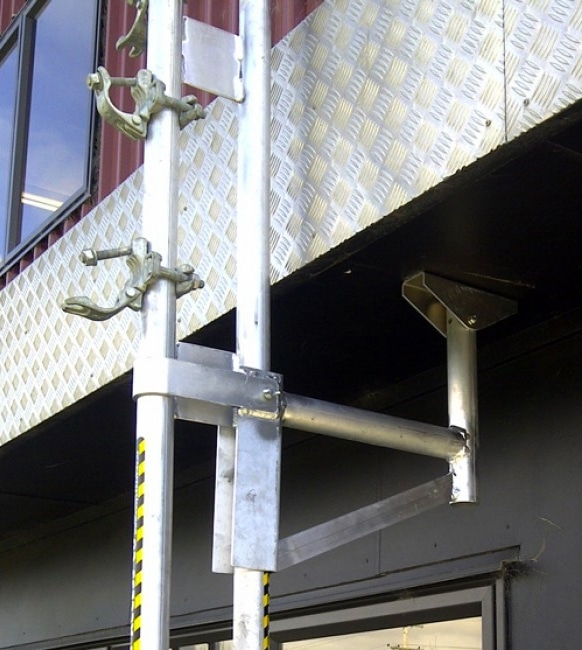

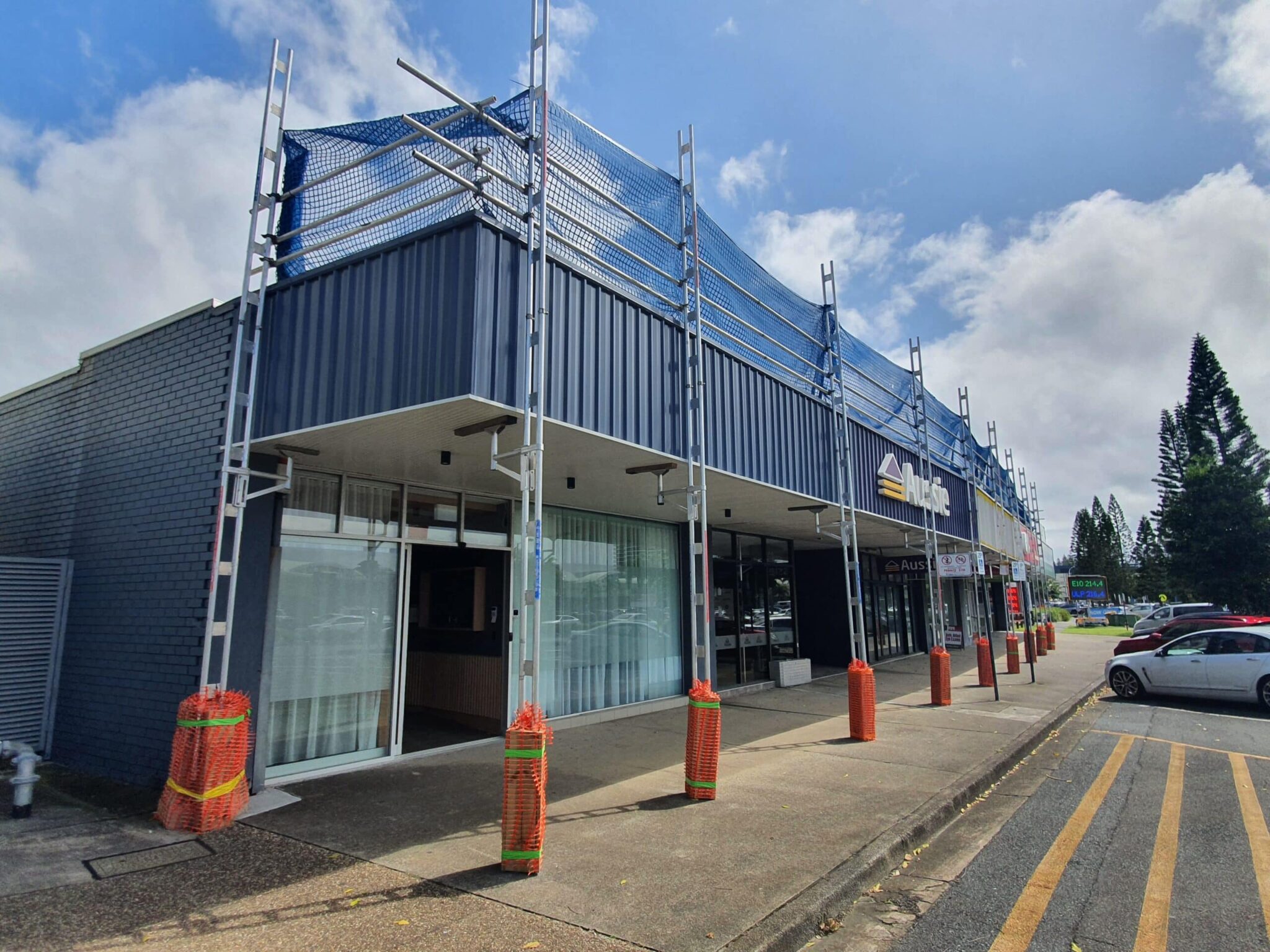

Upright posts are secured to the building using a cantilever bracket that tightens under the eves. With no bolts required, damage to the facade is avoided, and posts can be easily relocated around the building as required.

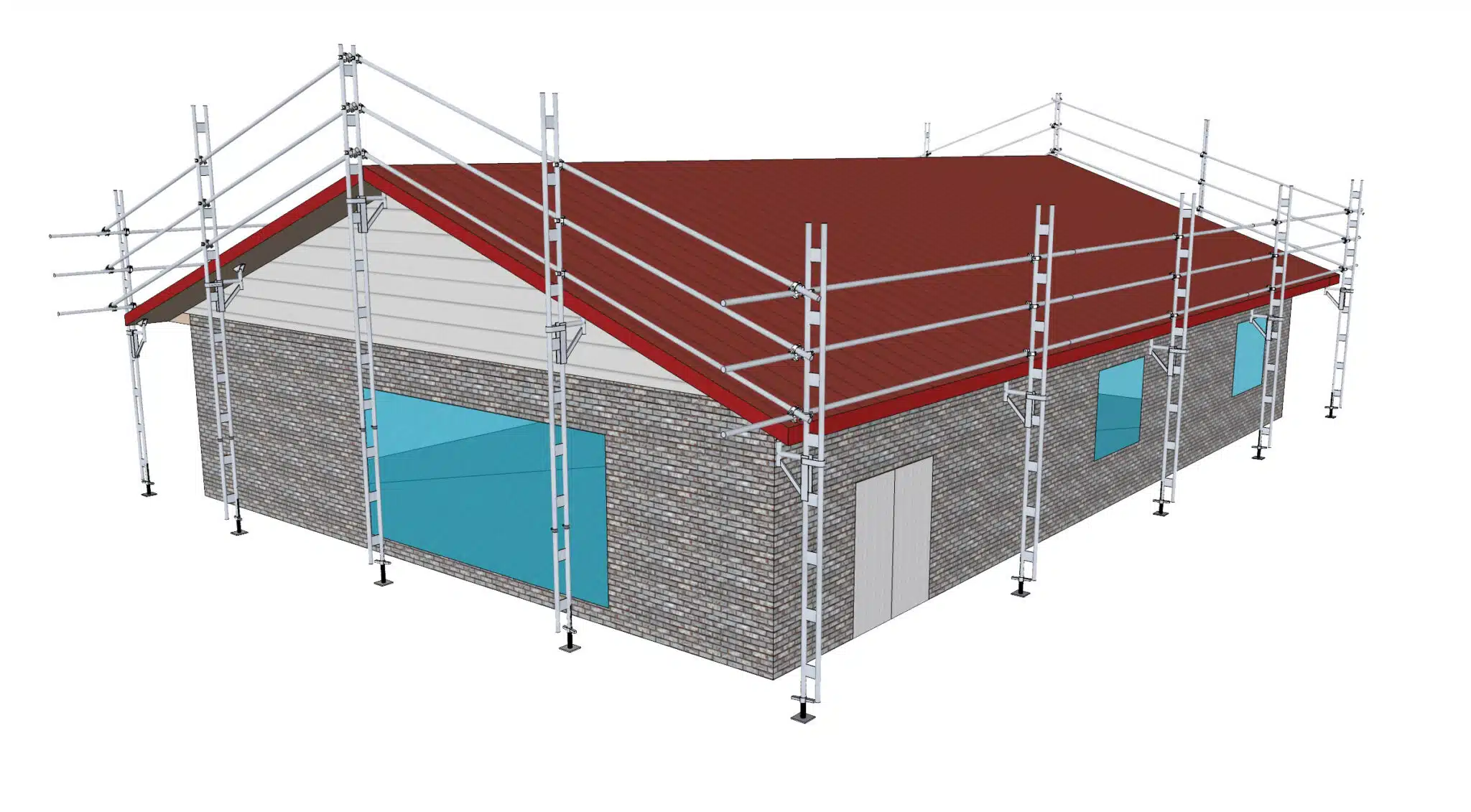

Lower, mid and top guardrails are added between the posts using couplers and aluminium tube to complete the fast and effective edge protection system for roofs.
For facade access below the soffits, add Easy Deck cantilever brackets at any height to support access platforms and guardrails.
An added benefit is the speed and ease of installation – EasyRail is proven to be up to three times as quick to install as standard edge protection.

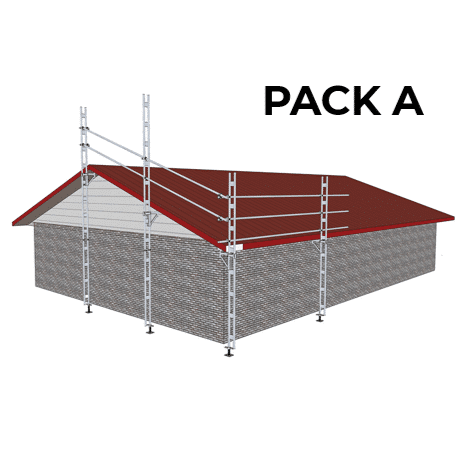

INCLUSIONS:
AER300.400 - 4.0m EasyRail Truss, Roof Post x 4
AER300.200 - 2.0m EasyRail Truss, Roof Post x 2
ALT740 - EasyRail Tube 6.0m length x 5
AER610.300 - 0.30m EasyRail Cantilever Bracket x 4
AJ48- 0.60m Base Jack - Adjustable x 4
IN48 - EasyRail Internal Joining Spigot x 4
FX48 - EasyRail Fixed Double Coupler x 9
SW48 - EasyRail Swivel Coupler x 4

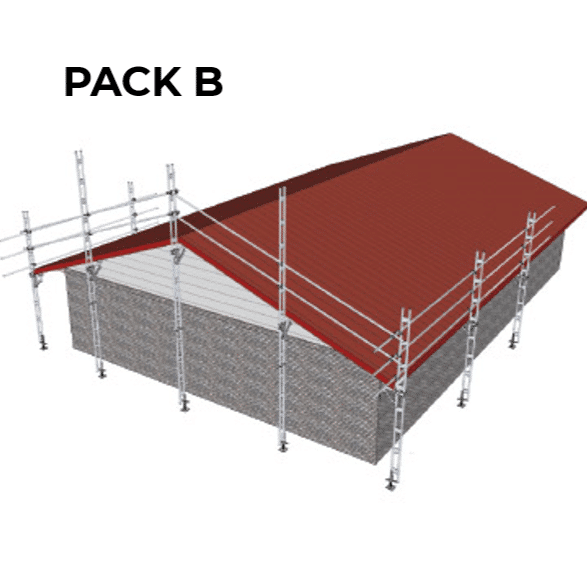

INCLUSIONS:
AER300.400 - 4.0m EasyRail Truss, Roof Post x 8 AER300.200 - 2.0m EasyRail Truss, Roof Post x 1 AER300.100 - 1.0m EasyRail Truss, Roof Post x 2 ALT740 - EasyRail Tube 6.0m length x 10 AER610.300 - 0.30m EasyRail Cantilever Bracket x 8 AJ48 - 0.60m Base Jack - Adjustable x 8 IN48 - EasyRail Internal Joining Spigot x 6 FX48 - EasyRail Fixed Double Coupler x 15 SW48 - EasyRail Swivel Coupler x 12INCLUSIONS:

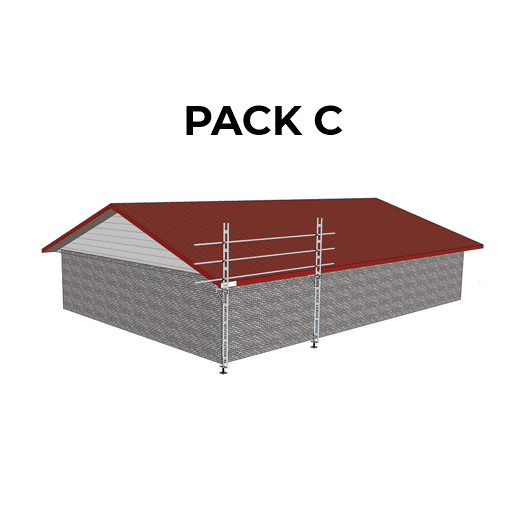

AER300.400 - 4.0m EasyRail Truss, Roof Post x 2
ALT740- EasyRail Tube 6.0m length x 3
AER610.300 - 0.30m EasyRail Cantilever Bracket x 2
AJ48 - 0.60m Base Jack - Adjustable x 2
FX48 - EasyRail Fixed Double Coupler x 6

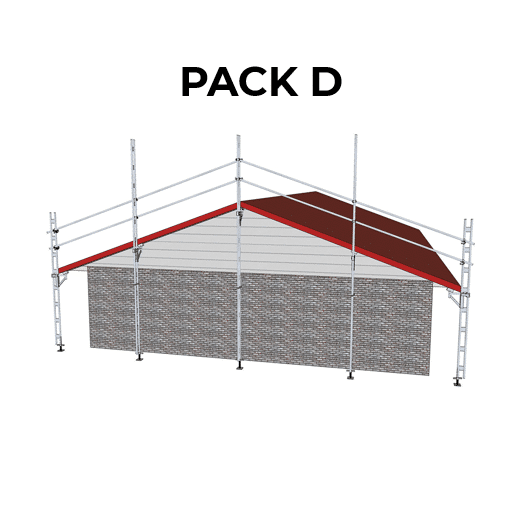

INCLUSIONS:
AER300.400 - 4.0m EasyRail Truss, Roof Post x 5
AER300.200 - 2.0m EasyRail Truss, Roof Post x 1
AER300.100 - 1.0m EasyRail Truss, Roof Post x 2
ALT740 - EasyRail Tube 6.0m length x 4
AER610.300 - 0.30m EasyRail Cantilever Bracket x 5
AJ48 - 0.60m Base Jack - Adjustable x 5
IN48 - EasyRail Internal Joining Spigot x 6
SW48 - EasyRail Swivel Coupler x 12

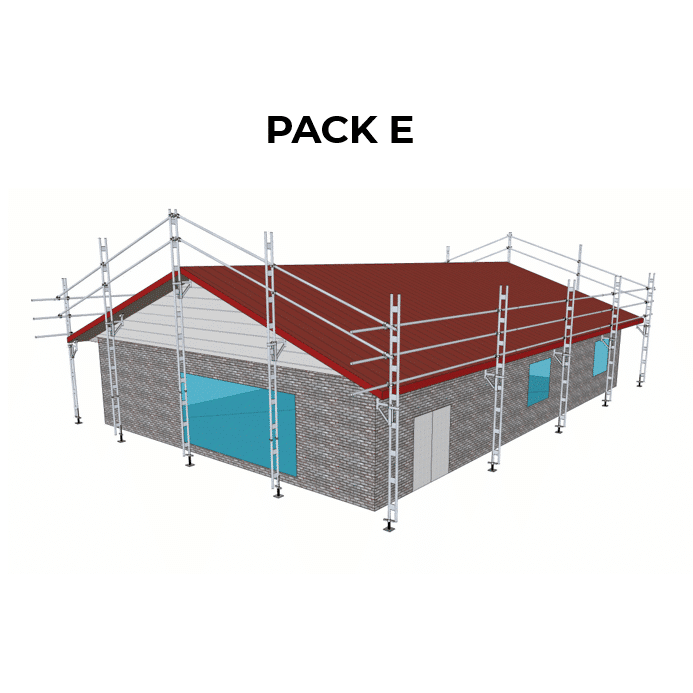

INCLUSIONS:
AER300.400 - 4.0m EasyRail Truss, Roof Post x 16
AER300.200 - 2.0m EasyRail Truss, Roof Post x 6
ALT740 - EasyRail Tube 6.0m length x 26
AER610.300 - 0.30m EasyRail Cantilever Bracket x 16
AJ48 - 0.60m Base Jack - Adjustable x 16
IN48 - EasyRail Internal Joining Spigot x 24
FX48 - EasyRail Fixed Double Coupler x 38
SW48 - EasyRail Swivel Coupler x 16
